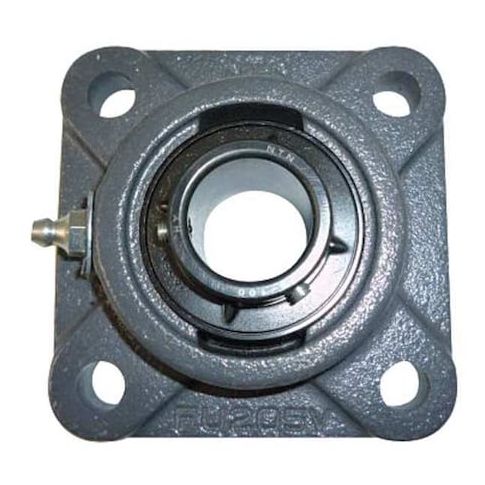

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw MPN:UCFUX-1M
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw
The NTN 4-Bolt Flange Bearing is a reliable and durable solution for various industrial applications. Suitable for use in environments with high temperatures and speeds, this bearing features a double sealed design and a maximum operating temperature of 250°F. With a maximum speed of 5,900 RPM, it can handle demanding applications such as conveyor systems, pumps, and gearboxes. The bearing's alloy steel insert and cast iron housing ensure long-lasting performance and resistance to wear. Its compact design and easy installation make it an ideal choice for a wide range of industries, including manufacturing, food processing, and mining.
Top product features:
- It has a double sealed closure to protect against contamination and wear.
- It is designed with a fixed expansion type to maintain consistent performance under changing conditions.
- It has a radial ball bearing insert made of alloy steel for durability and smooth operation.
Top product applications:
- Pump shafts
- Conveyor belts
- Gearboxes
4 Bolt Flange Bearing, Back Side to Center Width 0.78 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing A-UCX05-100D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 3 1/4 in, Number of Mount Holes 4
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 2.00
- Package Height: 4.60
- Package Weight: 2.95
Product info last updated on January 31, 2026 10:49pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
