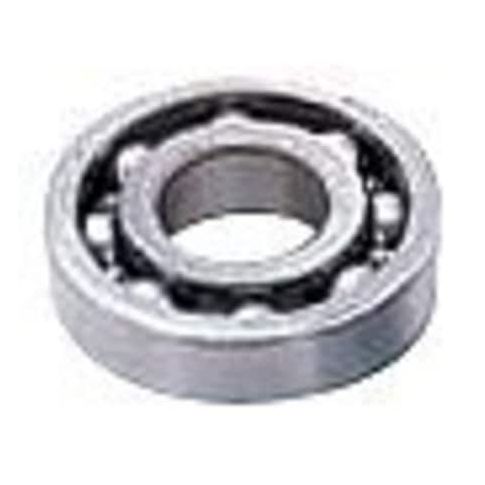

Radial Ball Bearing, 6206 Industry Number, Open, 30 mm Dia, Alloy Steel MPN:6206C3
Radial Ball Bearing, 6206 Industry Number, Open, 30 mm Dia, Alloy Steel
The NTN Radial Ball Bearing, 6206 series, is a high-quality, open-type bearing designed for heavy-duty applications. With a 30mm bore diameter and 16mm outer ring width, it provides a robust radial load capacity of 21,600N, making it ideal for use in machinery, equipment, and industrial applications. Its alloy steel construction and chrome-plated finish ensure durability and resistance to corrosion. Suitable for use in a wide range of industries, including automotive, aerospace, and manufacturing, this bearing is a reliable choice for applications requiring high precision and performance. Its compact size and lightweight design also make it suitable for use in robotics and automation.
Top product features:
- Radial Ball Bearing supports radial loads, allowing for smooth rotation and reduced friction.
- The bearing has a Chrome Plated finish, providing corrosion resistance and a durable surface.
- The bearing features a Pressed steel cage, which maintains proper ball spacing and promotes even load distribution.
Top product applications:
- Electric Motor
- Pump
- Conveyor System
Radial Ball Bearing, Bearing Industry Number 6206, Bore Diameter 30 mm, Closure Open, Outer Ring Width 16 mm, Outside Diameter 62 mm, Ring Material Alloy Steel, System of Measurement Metric, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Bore Diameter Tolerance +0/-0.010 mm, Cage Type Pressed, Dynamic Radial Load Capacity 21,600 N, Fillet Radius 1 mm, Finish Chrome Plated, Includes Retaining Ring No, ISO Rating Class 0, Lubricant Material Not Available
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 0.80
- Package Height: 2.70
- Package Weight: 0.43
Product info last updated on March 14, 2026 4:55am UTC
Category: Bearings, V-belts and Power Transmission Equipment
