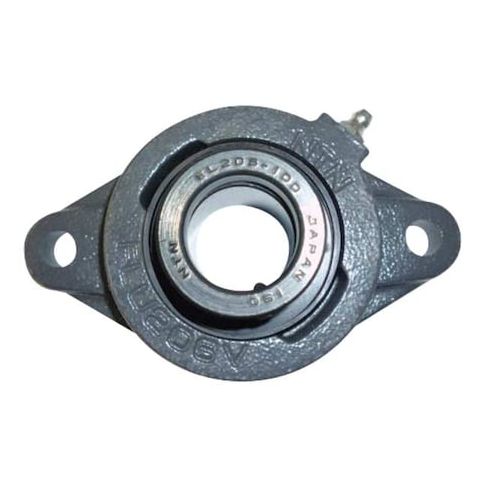

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Eccentric Locking Collar Locking MPN:UELFLU-1M
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Eccentric Locking Collar Locking
The NTN 2-Bolt Flange Bearing is a high-performance radial ball bearing designed for heavy-duty applications. Its alloy steel bearing insert and cast iron housing provide exceptional strength and durability, while the double-sealed closure ensures long-lasting lubrication and protection from contaminants. With a maximum speed of 5,900 RPM and operating temperature range of -40 to 250°F, this bearing is ideal for use in industrial machinery, power transmission systems, and other high-temperature applications. Its compact rhombus housing and fixed expansion type make it easy to install and maintain, making it a reliable choice for a variety of industries and uses.
Top product features:
- 2-Bolt design allows for easy installation and removal of the bearing
- Double sealed closure provides protection against contamination and debris
- Radial ball bearing design enables smooth rotation and reduced friction
Top product applications:
- Pump shaft bearing
- Gearbox bearing
- Conveyor pulley bearing
2 Bolt Flange Bearing, Back Side to Center Width 0.752 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing A-UEL205-100D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 2 13/32 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 2.20
- Package Height: 4.60
- Package Weight: 1.65
Product info last updated on January 19, 2026 8:08pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
