Flange Bearing, 4-Bolt, Ball, 1-1/4" Bore MPN:SUCFPL206-20
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1146546

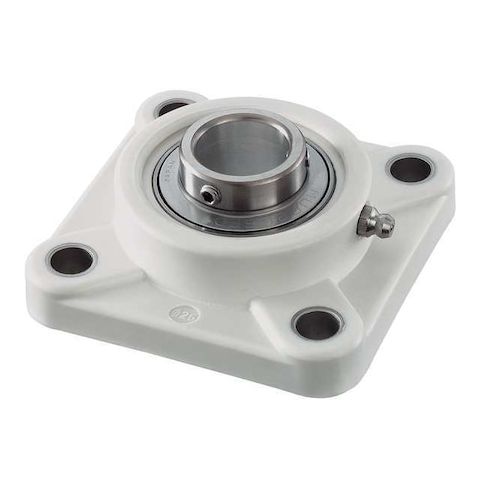

Flange Bearing, 4-Bolt, Ball, 1-1/4" Bore
The NTN 4-Bolt Flange Bearing is a high-performance solution for applications requiring precise movement and reliability. With a stainless steel bearing insert and FDA/USDA-H1 compliant lubricant, this bearing is ideal for use in food processing, pharmaceutical, and other sanitary environments. Its double sealed design and fixed expansion type ensure long-lasting operation in high-speed applications up to 4,300 RPM. Suitable for use in square housings, this bearing is perfect for OEMs and manufacturers seeking a reliable and durable solution for their equipment. Its compact size and high-speed capabilities make it an excellent choice for a variety of industries, including food processing, packaging, and more.
Top product features:
- Double sealed closure for protection against contaminants
- Radial ball bearing design for smooth rotation and reduced friction
- FDA/USDA-H1 solid grease lubricant for food-grade and sanitary applications
Top product applications:
- Food and Beverage Processing Machinery
- Pumps and Compressors
- Conveyors and Material Handling Systems
4 Bolt Flange Bearing, Back Side to Center Width 0.756 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Square, Included Bearing SUC206-20, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height 3 17/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 4.90
- Package Height: 1.80
- Package Weight: 1.13
