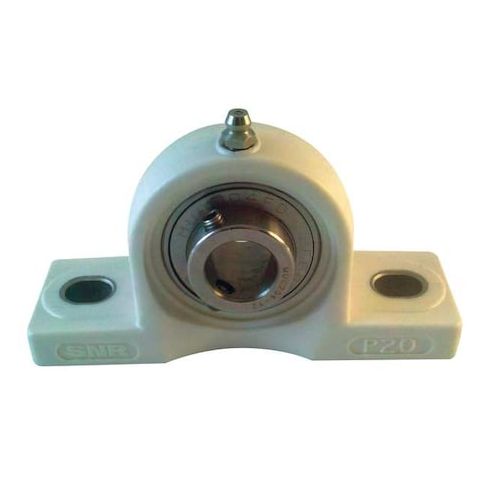

Pillow Block Bearing, Polymer, Set Screw Locking, Ball Insert, 40 mm Dia, Stainless Steel MPN:SUCPPL208
Pillow Block Bearing, Polymer, Set Screw Locking, Ball Insert, 40 mm Dia, Stainless Steel
The NTN Pillow Block Bearing is a reliable and durable solution for various industrial applications, including machine tools, gearboxes, and conveyor systems. Its stainless steel bearing insert and FDA/USDA-H1 solid grease provide exceptional corrosion resistance and sanitation, making it ideal for use in food processing, pharmaceutical, and chemical industries. The double-sealed closure ensures long-lasting performance and protection from contaminants. With a temperature range of -20 to 100°C, this bearing can withstand demanding environments. Its compact design and bolt-through mount make it easy to integrate into existing systems, offering a cost-effective and efficient solution for heavy-duty applications.
Top product features:
- Double Sealed Closure for Dust and Moisture Protection
- Bearing Insert Material Stainless Steel for Corrosion Resistance
- FDA/USDA-H1 Solid Grease Lubricant for Food and Pharmaceutical Industry Compatibility
Top product applications:
- Conveyor System
- Automotive Engine Mounts
- Heavy Machinery Mounts
Pillow Block Bearing, Base Height 19.5 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 40 mm, Bore Type Cylindrical, Center Height 49.1 mm, Closure Double Sealed, Housing Material Polymer, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Temperature 100 Degrees C, Minimum Temperature -20 Degrees C, Mount Hole Center-to-Center Length 137 mm, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 98 mm, Overall Length 184 mm
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 6.10
- Package Height: 2.50
- Package Weight: 2.29
Product info last updated on February 19, 2026 11:11pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
