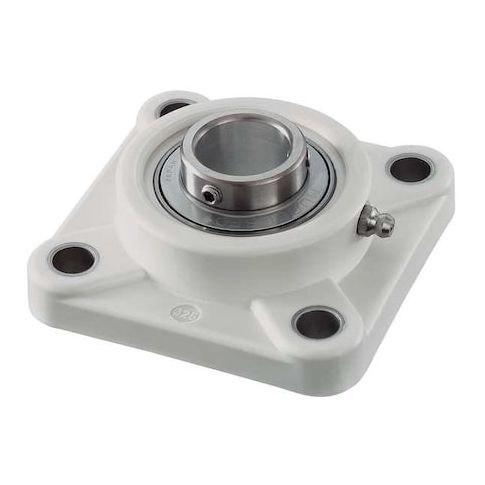

4 Mount Holes, Square, 4 Bolt Flange Bearing, Radial Ball, 25 mm Dia, Polymer, Set Screw Locking MPN:SUCFPL205
4 Mount Holes, Square, 4 Bolt Flange Bearing, Radial Ball, 25 mm Dia, Polymer, Set Screw Locking
The NTN 4-Bolt Flange Bearing is a reliable and versatile solution for a wide range of applications. Suitable for use in high-speed and high-temperature environments, this bearing features a stainless steel insert and FDA/USDA-H1 compliant grease for maximum durability and sanitation. Its fixed expansion type and double sealed design ensure long-lasting performance and protection against contamination. With a maximum speed of 5,100 RPM and a temperature range of -20 to 120 degrees C, this bearing is ideal for use in food processing, pharmaceutical, and other industries where precision and reliability are critical. Its compact size and square housing make it easy to integrate into existing systems.
Top product features:
- Double Sealed Closure to Prevent Contamination and Moisture Ingress
- Radial Ball Bearing Insert for Smooth and Quiet Rotation
- Fixed Expansion Type to Maintain Consistent Load and Prevent Misalignment
Top product applications:
- Conveyor systems
- Industrial machinery
- Heavy equipment
4 Bolt Flange Bearing, Back Side to Center Width 17 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 25 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Square, Included Bearing SUC205, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Mount Hole Center-to-Center Height 70 mm, Number of Mount Holes 4
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 4.10
- Package Height: 1.60
- Package Weight: 0.81
