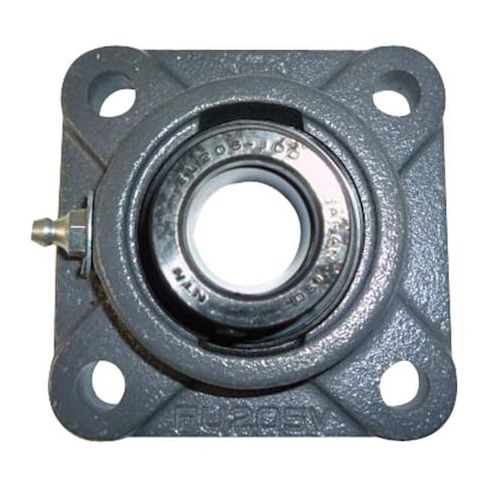

Flange Bearing, 4-Bolt, Ball, 1-7/16" Bore MPN:UELFU-1.7/16M
Flange Bearing, 4-Bolt, Ball, 1-7/16" Bore
This 4-bolt flange bearing from NTN is designed for heavy-duty applications requiring high-speed and temperature stability. With a maximum speed of 4,200 RPM and operating temperature range of -40°F to 250°F, it's ideal for use in machinery, equipment, and industrial settings. The bearing's alloy steel insert and cast iron housing provide durability and resistance to wear and corrosion. Its double-sealed closure ensures long-lasting lubrication and protects against contaminants. Suitable for applications in manufacturing, oil and gas, and construction, this bearing offers reliable performance and increased productivity. Its compact design and easy installation make it a convenient choice for various industries.
Top product features:
- Fixed Mount: The bearing has a fixed expansion type, allowing for secure and stable mounting in applications.
- Double Sealed Closure: The bearing features a double sealed closure, providing a high level of protection against dust and moisture.
- Radial Ball Bearing Insert: The bearing insert is a radial ball type, enabling smooth and efficient rotation in a wide range of applications.
Top product applications:
- Machine Tool Spindle
- Gearbox
- Pump Shaft
4 Bolt Flange Bearing, Back Side to Center Width 0.827 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 7/16 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing A-UEL207-107D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 4,200 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 3 5/8 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 2.50
- Package Height: 5.20
- Package Weight: 3.89
Product info last updated on March 7, 2026 10:54am UTC
Category: Bearings, V-belts and Power Transmission Equipment
