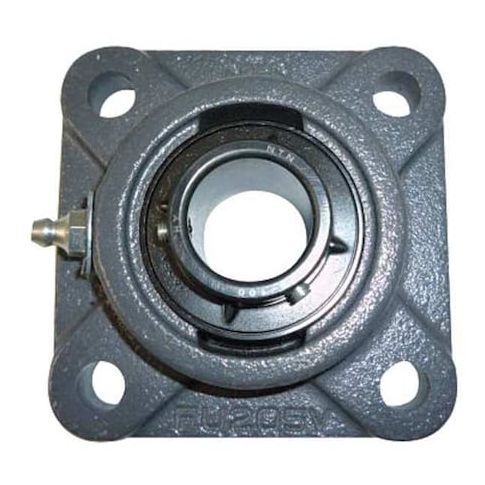

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw MPN:UCFU-1M
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw
This 4-bolt flange bearing from NTN is designed for heavy-duty applications, featuring a sturdy alloy steel bearing insert and cast iron housing. With a maximum speed of 5,900 RPM and operating temperature range of -40°F to 250°F, it can withstand demanding conditions. The double-sealed design ensures reliable performance and long lifespan. Suitable for use in machinery, equipment, and industrial settings, this bearing is ideal for applications requiring precise positioning and minimal vibration. Its compact size and square housing make it easy to integrate into existing systems, providing a reliable and efficient solution for a range of industrial applications.
Top product features:
- Double sealed closure provides protection from contaminants and debris
- Fixed expansion type bearing insert allows for consistent and reliable performance
- Cylindrical bore diameter of 1 inch enables precise and smooth rotation
Top product applications:
- Pump shaft bearings
- Electric motor bearings
- Conveyor belt bearings
4 Bolt Flange Bearing, Back Side to Center Width 0.752 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing A-UC205-100D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 2 3/4 in, Number of Mount Holes 4
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 1.60
- Package Height: 4.00
- Package Weight: 2.00
Product info last updated on March 7, 2026 2:45am UTC
Category: Bearings, V-belts and Power Transmission Equipment
