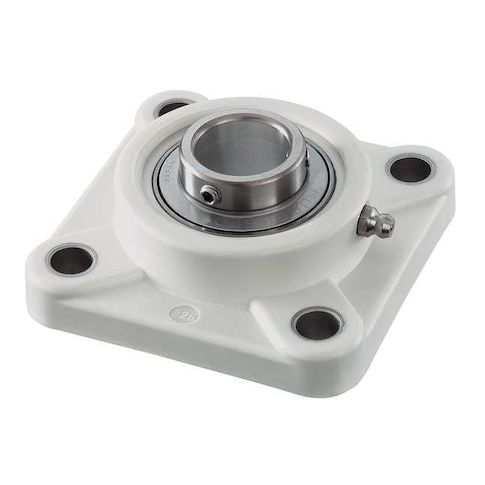

Flange Bearing, 4-Bolt, Ball, 1-1/4" Bore MPN:SUCFPL207-20
Flange Bearing, 4-Bolt, Ball, 1-1/4" Bore
The NTN 4-Bolt Flange Bearing is a reliable and versatile solution for a wide range of applications. Its stainless steel bearing insert and FDA/USDA-H1 compliant grease ensure cleanliness and hygiene in food processing, pharmaceutical, and other sensitive industries. With a maximum temperature rating of 250°F and a minimum temperature rating of -4°F, this bearing can withstand extreme conditions. Its fixed expansion type and double sealed closure provide long-lasting protection against dust and moisture. Suitable for high-speed applications up to 3,700 RPM, this bearing is ideal for use in machinery, equipment, and systems where reliability and precision are crucial.
Top product features:
- Double sealed closure for protection against contaminants and moisture
- Bearing insert made of stainless steel for corrosion resistance
- Maximum operating temperature of 250 Degrees F for high-temperature applications
Top product applications:
- Pump shaft support
- Conveyor belt pulley
- Gearbox mounting
4 Bolt Flange Bearing, Back Side to Center Width 0.846 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Square, Included Bearing SUC207-20, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,700 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height 3 39/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 4.80
- Package Height: 1.90
- Package Weight: 1.83
Product info last updated on April 25, 2026 9:42pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
