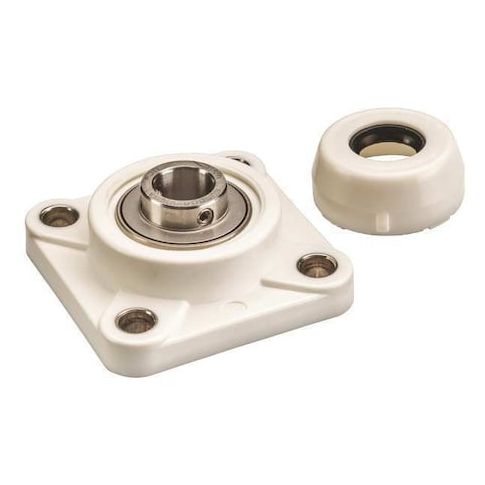

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Thermoplastic, Set Screw MPN:SUCFPL206-20C0FG1
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Thermoplastic, Set Screw
This 4-bolt flange bearing from NTN is designed for heavy-duty applications that require high-speed operation and extreme temperature tolerance. With a stainless steel bearing insert and FDA/USDA-H1 compliant solid grease, it's ideal for use in food processing, pharmaceutical, and other sanitary environments. Its fixed expansion type and double sealed closure ensure reliable performance in harsh conditions. Suitable for applications such as pumps, gearboxes, and conveyor systems, this bearing provides a long-lasting and maintenance-free solution for industries that demand high-performance and precision. Its compact design and square housing make it easy to integrate into existing systems.
Top product features:
- Double sealed closure to prevent contamination and maintain lubrication
- Stainless steel bearing insert for high corrosion resistance and durability
- Fixed expansion type for secure and stable mounting
Top product applications:
- Conveyor Systems
- Pump and Motor Mounts
- Gearbox and Engine Mounts
4 Bolt Flange Bearing, Back Side to Center Width 0.756 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Square, Included Bearing SUC206-20FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height 3 17/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 4.87
- Package Height: 3.05
- Package Weight: 1.12
Product info last updated on January 31, 2026 2:19am UTC
Category: Bearings, V-belts and Power Transmission Equipment
