Flange Bearing, 3-Bolt, 1-7/16" Bore Dia. MPN:SUCFBL207-23C0FG1

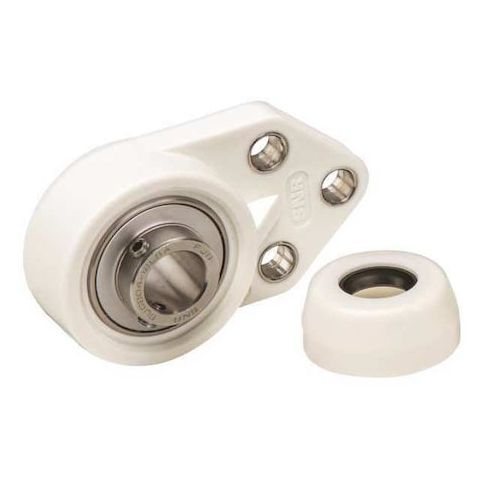

Flange Bearing, 3-Bolt, 1-7/16" Bore Dia.
The NTN 3-Bolt Flange Bearing is a reliable and durable solution for applications in the food and beverage industry. With its stainless steel bearing insert and FDA/USDA-H1 solid grease, this bearing ensures optimal performance in harsh environments. Its fixed expansion type and double sealed closure provide maximum protection against contamination and wear. The bearing's radial ball design and cylindrical bore make it ideal for use in high-speed applications, with a maximum speed of 3,700 RPM. Suitable for use in food processing equipment, brewery and winery machinery, and other applications where cleanliness and reliability are paramount.
Top product features:
- Double sealed closure protects the bearing from contamination and debris
- Bearing insert is made of stainless steel for durability and resistance to corrosion
- Radial ball bearing design allows for smooth rotation and low friction operation
Top product applications:
- Food processing equipment
- Conveyor systems in the food and beverage industry
- Packaging machinery for the food industry
Flange Mount Bearing, Back Side to Center Width 0.854 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 7/16 in, Bore Type Cylindrical, Center Height 4 19/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Thermoplastic, Housing Type Triangular, Included Bearing SUC207-23FG1, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 3,700 RPM, Maximum Temperature 212 Degrees F
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.62
- Package Width: 5.25
- Package Height: 3.31
- Package Weight: 1.46
Product info last updated on May 1, 2026 2:38pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
