4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Thermoplastic, Set Screw MPN:SUCFPL207-20C0FG1
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Thermoplastic, Set Screw

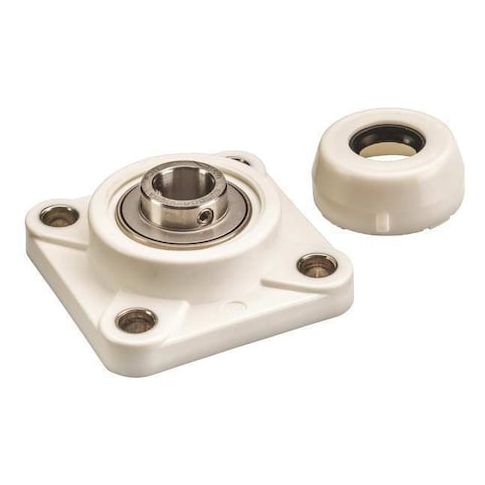

The NTN 4-Bolt Flange Bearing is a heavy-duty bearing designed for applications where high-speed and high-temperature operation are required. Its stainless steel bearing insert and FDA/USDA-H1 solid grease ensure a sanitary and durable solution for use in food processing, pharmaceutical, and other sanitary environments. The bearing's fixed expansion type and double sealed closure provide a secure and reliable fit, while its cylindrical bore and square housing make it easy to install and maintain. Suitable for use in a variety of applications, including pumps, mixers, and conveyor systems, this bearing offers a long-lasting and trouble-free operation.
Top product features:
- Double Sealed Closure
- Stainless Steel Bearing Insert
- Fixed Expansion Type
Top product applications:
- Pump and motor mounting in food processing and pharmaceutical equipment
- Conveyor and gear box applications in heavy industry
- High-temperature bearing applications in industrial ovens and dryers
Flange Mount Bearing, Back Side to Center Width 0.846 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height 2 21/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Polymer, Housing Type Square, Included Bearing SUC207-20FG1, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 3,700 RPM, Maximum Temperature 212 Degrees F
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 4.87
- Package Height: 3.05
- Package Weight: 1.65
