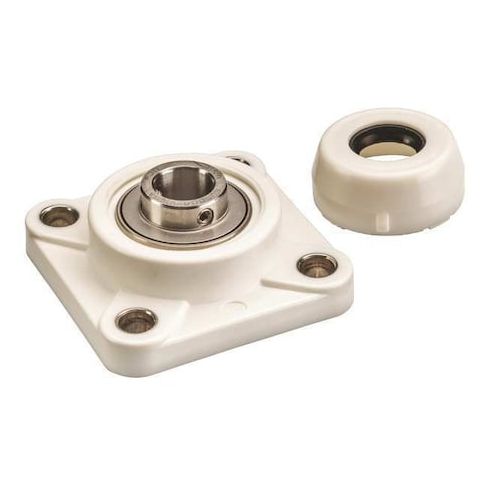

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Thermoplastic, Set Screw MPN:SUCFPL208-24C0FG1
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Thermoplastic, Set Screw
The NTN 4-Bolt Flange Bearing is a reliable and versatile solution for various industrial applications. This bearing features a stainless steel radial ball insert, ensuring durability and resistance to corrosion. Its double-sealed design provides long-lasting protection against contaminants and moisture, making it suitable for use in harsh environments. With a maximum speed of 3,300 RPM and operating temperatures ranging from -4°F to 250°F, this bearing can be used in a wide range of applications, including food processing, pharmaceutical, and chemical industries, as well as in equipment manufacturing and heavy machinery. Its compact design makes it ideal for space-constrained installations.
Top product features:
- Double sealed closure to prevent contamination and maintain lubrication
- Radial ball bearing insert for smooth rotation and reduced friction
- Fixed expansion type to maintain consistent fit and prevent loosening over time
Top product applications:
- Food Processing Equipment
- Aerospace Components
- Medical Equipment
Flange Mount Bearing, Back Side to Center Width 0.906 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/2 in, Bore Type Cylindrical, Center Height 2 35/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Thermoplastic, Housing Type Square, Included Bearing SUC208-24FG1, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 3,300 RPM, Maximum Temperature 212 Degrees F
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.12
- Package Width: 7.00
- Package Height: 2.69
- Package Weight: 2.16
Product info last updated on February 11, 2026 2:01pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
