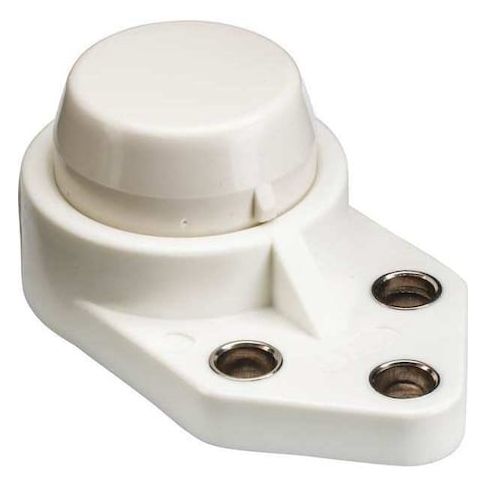

3 Mount Holes, Flange Bracket, 3 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Polymer, Set Screw Locking MPN:SUCFBL208-24CCFG1
3 Mount Holes, Flange Bracket, 3 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Polymer, Set Screw Locking
The NTN 3-Bolt Flange Bearing is a high-performance bearing designed for use in the food and beverage industry. Its stainless steel insert and FDA/USDA-H1 solid grease ensure a clean and sanitary environment, while its double sealed closure protects against contamination. Suitable for applications involving high temperatures and speeds, this bearing can withstand up to 3,300 RPM and 250°F. Its flange bracket housing and fixed expansion type make it ideal for use in machinery and equipment. With a lead time of 10 days and a minimum order quantity of 1, this bearing is perfect for businesses requiring quick and reliable replacements.
Top product features:
- Three-Bolt Flange design provides secure mounting and easy installation
- Radial Ball Bearing Insert provides smooth rotation and reduced friction
- Double Sealed Closure maintains lubricant and protects against contaminants
Top product applications:
- Food and Beverage Manufacturing
- Pump and Compressor Applications
- Food Processing Equipment
3 Bolt Flange Bearing, Back Side to Center Width 0.854 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/2 in, Bore Type Cylindrical, Center Height 4 19/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Polymer, Housing Type Flange Bracket, Included Bearing SUC208-24, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,300 RPM, Maximum Temperature 250 Degrees F
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.62
- Package Width: 5.25
- Package Height: 3.31
- Package Weight: 1.76
Product info last updated on March 10, 2026 7:12pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
