2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-5/8 in Dia, Stainless Steel, Set Screw Locking MPN:SUCFL209-26C0FG1
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-5/8 in Dia, Stainless Steel, Set Screw Locking

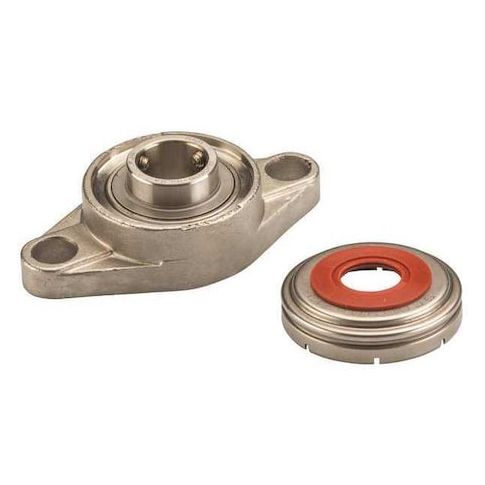

The NTN Flange Bearing is a reliable and versatile solution for various industrial applications. Its 2-bolt design and stainless steel construction ensure durability and resistance to corrosion, while the radial ball bearing insert provides smooth and quiet operation. Suitable for use in high-speed applications up to 3,100 RPM, this bearing can withstand temperatures from -14 to 212 degrees F. Its compact rhombus housing and double-sealed design make it ideal for use in food processing, pharmaceutical, and chemical processing environments where cleanliness and hygiene are crucial. Its compact size also makes it suitable for use in tight spaces.
Top product features:
- Double sealed design for protection against contaminants and debris
- Radial ball bearing type for smooth and quiet operation
- FDA/USDA-H1 solid grease lubricant for food-grade and sanitary applications
Top product applications:
- Food Processing Equipment
- Heavy Duty Industrial Machinery
- Pumps and Compressors
2 Bolt Flange Bearing, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 5/8 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUCFL209-26C0FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,100 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 5 53/64 in, Number of Mount Holes 2
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.62
- Package Width: 5.25
- Package Height: 3.31
- Package Weight: 3.99
Product info last updated on February 1, 2026 2:51am UTC
Category: Bearings, V-belts and Power Transmission Equipment
