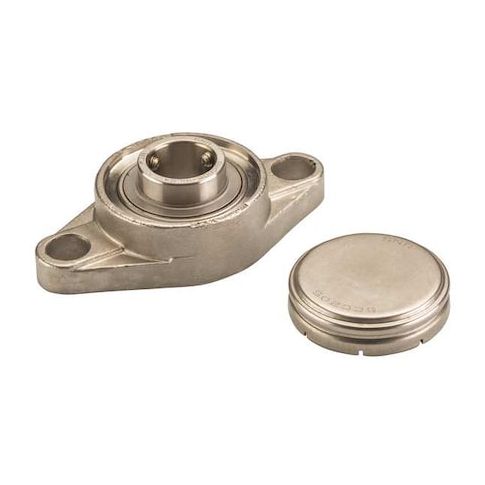

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-3/4 in Dia, Stainless Steel, Set Screw Locking MPN:SUCFL209-28CCFG1
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-3/4 in Dia, Stainless Steel, Set Screw Locking
The NTN 2-Bolt Flange Bearing is a reliable and durable solution for applications requiring high-speed and high-temperature performance. Its stainless steel housing and radial ball bearing insert ensure long-lasting operation in harsh environments. With a maximum speed of 3,100 RPM and a temperature range of 14°F to 212°F, this bearing is ideal for use in food processing, pharmaceutical, and other sanitary applications. Its compact design and fixed expansion type make it suitable for mounting in tight spaces, making it a versatile choice for a variety of industries and equipment.
Top product features:
- 2-Bolt flange design for secure mounting
- Double sealed closure to prevent contamination and ensure long bearing life
- FDA/USDA-H1 solid grease for lubrication to meet food-grade standards
Top product applications:
- Food Processing Equipment
- General Industrial Equipment
- Pump and Compressor Applications
2 Bolt Flange Bearing, Back Side to Center Width 0.866 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC209-28, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,100 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 5 53/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.62
- Package Width: 5.25
- Package Height: 3.31
- Package Weight: 3.99
Product info last updated on January 31, 2026 11:09pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
