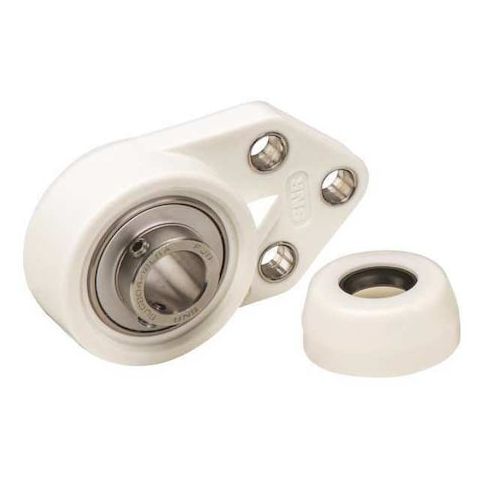

Flange Bearing, 3-Bolt, 1-3/16" Bore Dia. MPN:SUCFBL206-19C0FG1
Flange Bearing, 3-Bolt, 1-3/16" Bore Dia.
This 3-bolt flange bearing from NTN is designed for use in food and beverage processing environments, ensuring a high level of sanitation and hygiene. The stainless steel bearing insert and FDA/USDA-H1 solid grease provide corrosion resistance and meet strict food safety standards. The bearing's radial ball design and double sealed closure ensure smooth, quiet operation and protect against contamination. Suitable for applications in food processing, breweries, and wineries, this bearing excels in high-speed, high-temperature environments, with a maximum speed of 4,300 RPM and a temperature rating of 250°F. Its compact design makes it ideal for tight spaces.
Top product features:
- Double sealed closure for protection against contaminants
- Radial ball bearing insert for smooth rotation and reduced friction
- FDA/USDA-H1 solid grease lubricant for safe use in food and beverage environments
Top product applications:
- Food Processing Equipment
- Equipment in the food and beverage industry
- Pumps and gearboxes in the food and beverage industry
3 Bolt Flange Bearing, Back Side to Center Width 0.76 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/16 in, Bore Type Cylindrical, Center Height 3 23/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Polymer, Housing Type Flange Bracket, Included Bearing SUC206-19, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 250 Degrees F
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.62
- Package Width: 4.38
- Package Height: 2.56
- Package Weight: 1.01
Product info last updated on January 31, 2026 2:00am UTC
Category: Bearings, V-belts and Power Transmission Equipment
