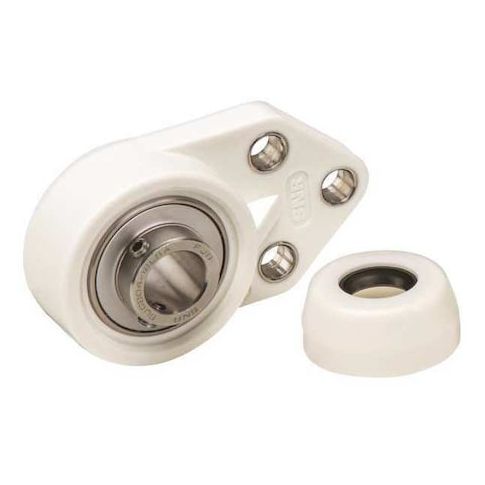

3 Mount Holes, Flange Bracket, 3 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Polymer, Set Screw Locking MPN:SUCFBL207-20C0FG1
3 Mount Holes, Flange Bracket, 3 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Polymer, Set Screw Locking
The NTN 3-Bolt Flange Bearing is a reliable solution for demanding applications in the food and beverage industry. Its stainless steel bearing insert and FDA/USDA-H1 solid grease ensure contamination-free operation, while its double-sealed design protects against harsh environments. With a maximum temperature of 250°F and a speed of up to 3,700 RPM, this bearing is suitable for high-performance equipment. Its compact design and fixed expansion type make it ideal for use in tight spaces and applications where precise positioning is critical. Suitable for applications such as pumps, mixers, and conveyor systems, this bearing provides long-lasting reliability and minimal maintenance.
Top product features:
- Double Sealed Closure
- Radial Ball Bearing Insert Type
- Stainless Steel Bearing Insert Material
Top product applications:
- Food Processing Equipment
- Conveyor Systems
- Mixing and Blending Machinery
3 Bolt Flange Bearing, Back Side to Center Width 0.854 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height 3 51/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Polymer, Housing Type Flange Bracket, Included Bearing SUC207, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,700 RPM, Maximum Temperature 250 Degrees F
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.62
- Package Width: 5.25
- Package Height: 3.31
- Package Weight: 1.46
Product info last updated on March 15, 2026 11:15am UTC
Category: Bearings, V-belts and Power Transmission Equipment
