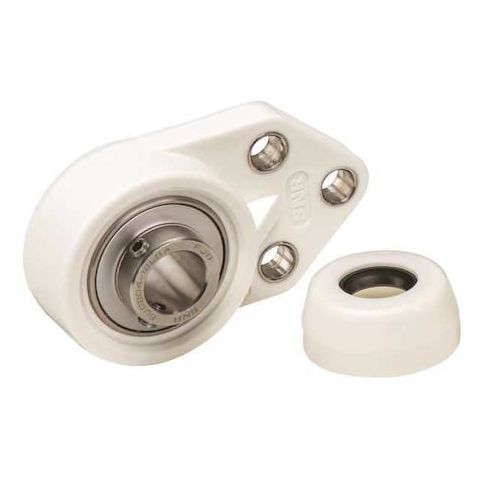

3 Mount Holes, Flange Bracket, 3 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Polymer, Set Screw Locking MPN:SUCFBL206-20C0FG1
3 Mount Holes, Flange Bracket, 3 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Polymer, Set Screw Locking
This 3-bolt flange bearing is designed for use in harsh food and beverage environments, with a stainless steel bearing insert and FDA/USDA-H1 solid grease for maximum cleanliness and durability. The radial ball bearing design provides smooth operation and resistance to shock and vibration, while the flange bracket housing ensures easy mounting and secure positioning. With a maximum speed of 4,300 RPM and a temperature range of 250°F, this bearing is ideal for applications such as pumps, mixers, and conveyor systems in the food processing and packaging industries. Its compact size and easy installation make it a reliable choice for demanding environments.
Top product features:
- Double sealed closure to prevent contamination and maintain cleanliness in food and beverage environments.
- Radial ball bearing design provides smooth rotation and reduced friction in high-speed applications up to 4,300 RPM.
- Stainless steel bearing insert resists corrosion and ensures durability in harsh environments.
Top product applications:
- Food Processing Equipment
- Conveyor Systems
- Packaging Machinery
3 Bolt Flange Bearing, Back Side to Center Width 0.76 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height 3 51/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Polymer, Housing Type Flange Bracket, Included Bearing SUC206-20, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 250 Degrees F
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.62
- Package Width: 4.38
- Package Height: 2.56
- Package Weight: 1.01
Product info last updated on January 31, 2026 10:14pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
