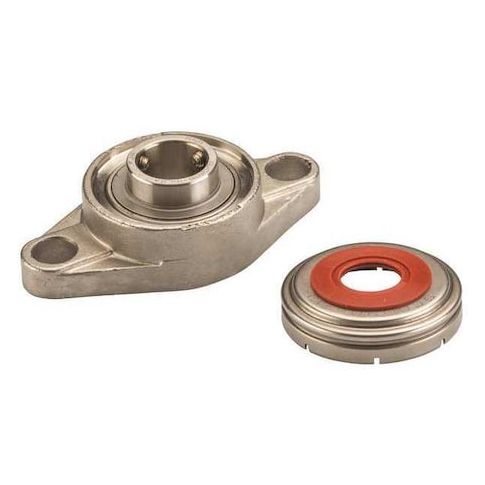

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Stainless Steel, Set Screw MPN:SUCFL208-24C0FG1
2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Stainless Steel, Set Screw
The NTN 2-Bolt Flange Bearing is a reliable and durable solution for applications requiring high-speed and high-temperature performance. Its stainless steel housing and radial ball bearing insert ensure corrosion resistance and smooth operation, while the double sealed closure protects against contaminants and extends bearing life. Suitable for use in food processing, pharmaceutical, and other sanitary environments, this bearing is ideal for applications such as pumps, mixers, and gearboxes. With a maximum speed of 3,300 RPM and a temperature range of -14°F to 212°F, this bearing provides a versatile and long-lasting solution for a variety of industrial applications.
Top product features:
- Two-bolt design for secure mounting
- Double sealed closure for protection against contaminants
- Radial ball bearing with stainless steel insert for high-temperature and chemical resistance
Top product applications:
- Pump and motor mount
- Conveyor systems
- Industrial equipment mounting
2 Bolt Flange Bearing, Back Side to Center Width 0.827 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/2 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC208-24, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,300 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 5 43/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.62
- Package Width: 5.25
- Package Height: 3.31
- Package Weight: 3.37
Product info last updated on February 14, 2026 6:24am UTC
Category: Bearings, V-belts and Power Transmission Equipment
