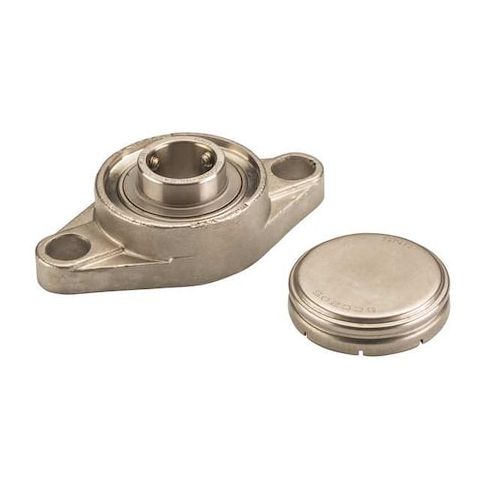

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Stainless Steel, Set Screw Locking MPN:SUCFL207-20CCFG1
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Stainless Steel, Set Screw Locking
This 2-Bolt Flange Bearing is a reliable and durable solution for various industrial applications. With a 1-1/4in bore and stainless steel construction, it withstands harsh environments and extreme temperatures from 14°F to 212°F. The double-sealed design and FDA/USDA-H1 approved lubricant ensure long-lasting performance and compliance with food and pharmaceutical standards. Suitable for use in machinery, equipment, and conveyor systems, this bearing supports up to 3,700 RPM. Its compact rhombus housing and fixed expansion type make it easy to integrate into existing systems, providing a reliable and efficient solution for demanding industrial applications.
Top product features:
- 2-Bolt design allows for easy installation and maintenance
- Double sealed closure provides a high level of protection against contaminants and moisture
- Radial ball bearing design enables smooth and quiet operation at high speeds
Top product applications:
- Food Processing Machinery
- Pumps and Compressors
- Power Transmission Equipment
2 Bolt Flange Bearing, Back Side to Center Width 0.748 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC207-20, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,700 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 5 1/8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.62
- Package Width: 4.38
- Package Height: 2.56
- Package Weight: 2.60
Product info last updated on February 1, 2026 6:10am UTC
Category: Bearings, V-belts and Power Transmission Equipment
