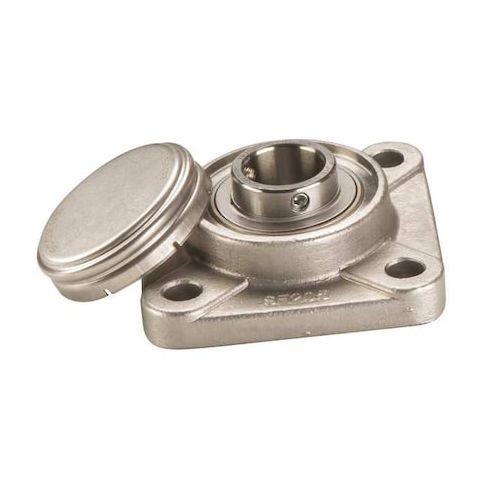

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Stainless Steel, Set Screw MPN:SUCF208-24CCFG1
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Stainless Steel, Set Screw
The NTN Flange Bearing, 4-Bolt, 1-1/2in Bore, SS/SS is a high-performance bearing designed for demanding applications. Its stainless steel construction and double sealed closure ensure long-lasting reliability in harsh environments. With a maximum temperature of 250°F and a minimum temperature of -20°F, this bearing can withstand extreme temperatures. Its fixed expansion type and square housing make it suitable for heavy-duty machinery and equipment. Ideal for use in food processing, pharmaceutical, and chemical industries, this bearing provides smooth operation and reduced maintenance. Its compact size and high-speed capabilities make it an excellent choice for a variety of applications.
Top product features:
- Double sealed closure protects the bearing from contaminants and debris.
- Radial ball bearing design allows for smooth rotation and reduced friction.
- Stainless steel housing and bearing insert provide corrosion resistance and durability.
Top product applications:
- Food Processing Equipment
- Pumps and Compressors
- Heavy Machinery
4 Bolt Flange Bearing, Back Side to Center Width 0.827 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/2 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC208-24FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 4 1/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.12
- Package Width: 7.00
- Package Height: 2.69
- Package Weight: 4.17
Product info last updated on February 1, 2026 1:50pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
