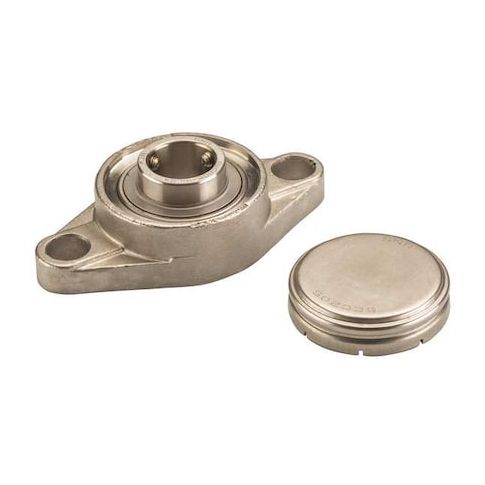

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Stainless Steel, Set Screw Locking MPN:SUCFL208-24CCFG1
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Stainless Steel, Set Screw Locking
This 2-bolt flange bearing is designed for high-performance applications, featuring a stainless steel housing and radial ball bearing insert for durability and resistance to corrosion. The double-sealed design provides maximum protection against contaminants and moisture, while the FDA/USDA-H1 solid grease lubricant ensures long-lasting performance in extreme temperatures. Suitable for use in food processing, pharmaceutical, and other sanitary environments, this bearing is ideal for applications where precision and reliability are critical. Its compact rhombus housing and fixed expansion type make it easy to integrate into existing systems, providing a reliable and efficient solution for demanding industrial applications.
Top product features:
- Double sealed closure to protect the bearing from contamination and debris
- Radial ball bearing type for smooth rotational movement and reduced friction
- FDA/USDA-H1 solid grease lubricant for food-grade and sanitary applications
Top product applications:
- Food processing equipment
- Pumps and compressors
- Conveyors and conveyor systems
2 Bolt Flange Bearing, Back Side to Center Width 0.827 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/2 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC208-24, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,300 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 5 43/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.62
- Package Width: 5.25
- Package Height: 3.31
- Package Weight: 3.37
Product info last updated on January 31, 2026 10:49pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
