2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Polymer, Set Screw Locking MPN:SUCNFL204-12C0FG1
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Polymer, Set Screw Locking

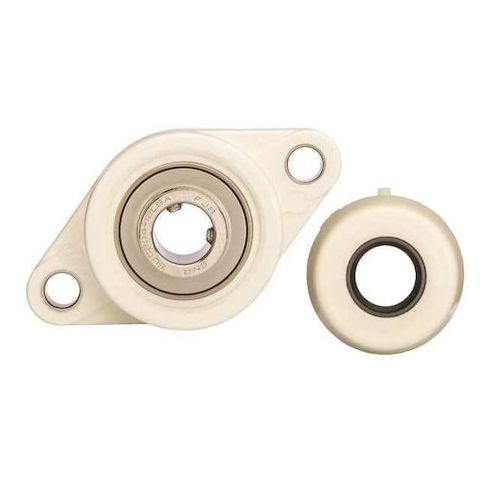

This 2-bolt flange bearing from NTN is a reliable and durable solution for various industrial applications. With a 3/4 inch bore diameter and a maximum speed of 5,900 RPM, it's ideal for use in high-speed machinery and equipment. The bearing features a stainless steel insert and a polymer housing, providing excellent corrosion resistance and a long lifespan. The double-sealed design ensures minimal lubricant leakage and maximum protection against contaminants. Suitable for use in food processing, pharmaceutical, and other industries where high cleanliness and hygiene are required, this bearing offers a reliable and cost-effective solution for bearing replacement and maintenance.
Top product features:
- 2-Bolt design provides secure attachment to the mounting surface
- Double sealed closure protects the bearing from dust and moisture
- Radial ball bearing insert allows for smooth rotation and reduced friction
Top product applications:
- Food Processing Equipment
- Automotive Applications
- Pump Mounting
2 Bolt Flange Bearing, Back Side to Center Width 0.606 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Rhombus, Included Bearing SUC204-12, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Number of Mount Holes 2, Overall Height 2 35/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.17
- Package Width: 6.12
- Package Height: 1.80
- Package Weight: 0.55
Product info last updated on February 1, 2026 9:57am UTC
Category: Bearings, V-belts and Power Transmission Equipment
