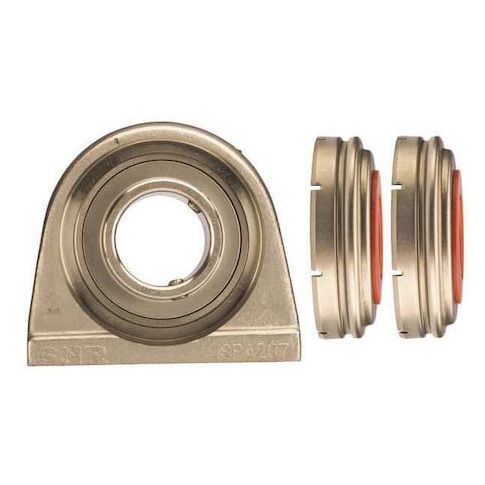

Pillow Block Bearing, Stainless Steel, Set Screw Locking, Ball Insert, 1-3/4 in Dia, Stainless Steel MPN:SUCPA209-28C0FG1
Pillow Block Bearing, Stainless Steel, Set Screw Locking, Ball Insert, 1-3/4 in Dia, Stainless Steel
This NTN bearing features a 1-3/4in bore diameter and stainless steel housing, making it ideal for applications in harsh environments where corrosion resistance is crucial. The double-sealed design provides maximum protection against dust and moisture, while the FDA/USDA-H1 solid grease ensures compliance with food and pharmaceutical industry standards. With a maximum speed of 3,100 RPM and operating temperature range of -4 to 250 degrees F, this bearing is suitable for use in industrial machinery, food processing equipment, and other high-speed applications that require reliable performance and minimal maintenance. Its compact design also makes it a great fit for space-constrained environments.
Top product features:
- Double sealed closure provides protection from contaminants and debris
- Bearing insert is made of stainless steel for corrosion resistance
- Radial ball bearing design allows for smooth rotation and high load capacity
Top product applications:
- Food Processing Equipment
- Heavy Duty Industrial Equipment
- Medical Device Manufacturing
Pillow Block Bearing, Base Height 0.511 in, Base Width 2.007 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/4 in, Bore Type Cylindrical, Center Height 2 1/8 in, Closure Double Sealed, Housing Material Stainless Steel, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 3 3/4 in, Mount Type Bolt-Through, Number of Mount Holes 2
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.62
- Package Width: 5.25
- Package Height: 3.31
- Package Weight: 5.14
Product info last updated on January 31, 2026 9:52pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
