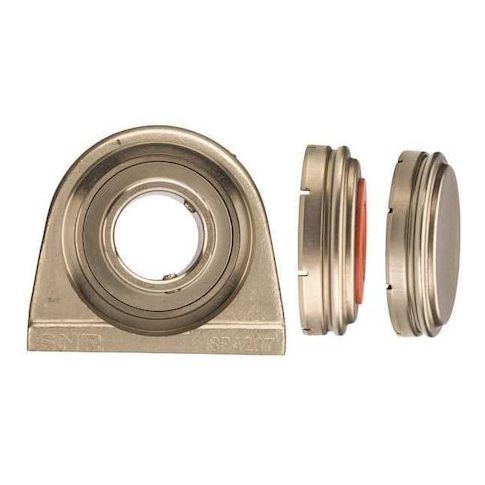

Pillow Block Bearing, Stainless Steel Housing Material, Set Screw, Ball, 1-3/4 in Dia, Stainless Steel Insert Material MPN:SUCPA209-28CCFG1
Pillow Block Bearing, Stainless Steel Housing Material, Set Screw, Ball, 1-3/4 in Dia, Stainless Steel Insert Material
This NTN stainless steel pillow block bearing is designed for use in high-temperature and high-speed applications, with a maximum speed of 3,100 RPM and a temperature range of -4°F to 250°F. The bearing features a double-sealed design and is filled with FDA/USDA-H1 solid grease for food-grade and sanitary applications. The stainless steel housing provides corrosion resistance and durability. Suitable for use in the food processing, pharmaceutical, and chemical industries, this bearing is also ideal for use in machinery and equipment where high-speed and high-temperature operation is required. Its compact design and easy installation make it a convenient choice.
Top product features:
- Double sealed closure for protection against contaminants
- Radial ball bearing insert for smooth and quiet operation
- Stainless steel housing and FDA/USDA-H1 grease for use in harsh environments
Top product applications:
- Industrial machinery
- Construction equipment
- Aerospace applications
Pillow Block Bearing, Base Height 0.511 in, Base Width 2.007 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/4 in, Bore Type Cylindrical, Center Height 2 1/8 in, Closure Double Sealed, Housing Material Stainless Steel, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 3 3/4 in, Mount Type Bolt-Through, Number of Mount Holes 2
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.62
- Package Width: 5.25
- Package Height: 3.31
- Package Weight: 5.14
Product info last updated on February 1, 2026 12:39am UTC
Category: Bearings, V-belts and Power Transmission Equipment
