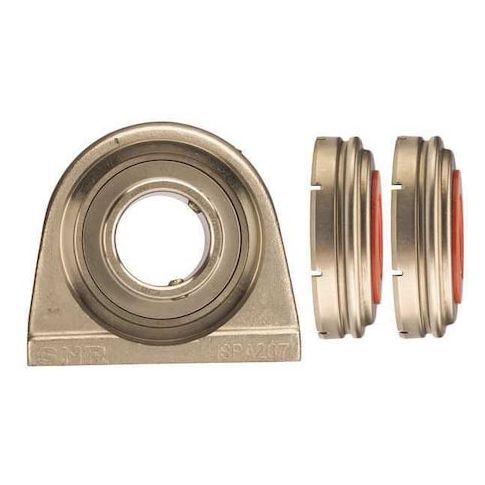

Pillow Block Bearing, Stainless Steel, Set Screw Locking, Ball Insert, 1-1/4 in Dia, Stainless Steel MPN:SUCPA206-20C0FG1
Pillow Block Bearing, Stainless Steel, Set Screw Locking, Ball Insert, 1-1/4 in Dia, Stainless Steel
The NTN 1-1/4in Bore Dia. SS Housing Pillow Block Bearing is a high-performance bearing designed for demanding industrial applications. Its stainless steel housing and FDA/USDA-H1 solid grease ensure corrosion resistance and food-grade safety, making it ideal for use in food processing, pharmaceutical, and other sanitary environments. With a maximum speed of 4,300 RPM and operating temperatures from -4 to 250°F, this bearing is suitable for a wide range of applications, including conveyor systems, machinery, and equipment in harsh or high-temperature settings. Its compact design and bolt-through mount make it easy to integrate into existing systems.
Top product features:
- Radial ball bearing design provides smooth rotation and reduced friction.
- Double sealed closure protects the bearing from dust and moisture.
- FDA/USDA-H1 solid grease lubricant ensures food-grade cleanliness in high-temperature applications.
Top product applications:
- Industrial machinery
- Conveyor systems
- Pumps and compressors
Pillow Block Bearing, Base Height 0.472 in, Base Width 1.496 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height 1 11/16 in, Closure Double Sealed, Housing Material Stainless Steel, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 3 in, Mount Type Bolt-Through, Number of Mount Holes 2
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.62
- Package Width: 4.38
- Package Height: 2.56
- Package Weight: 2.87
Product info last updated on February 1, 2026 9:06am UTC
Category: Bearings, V-belts and Power Transmission Equipment
