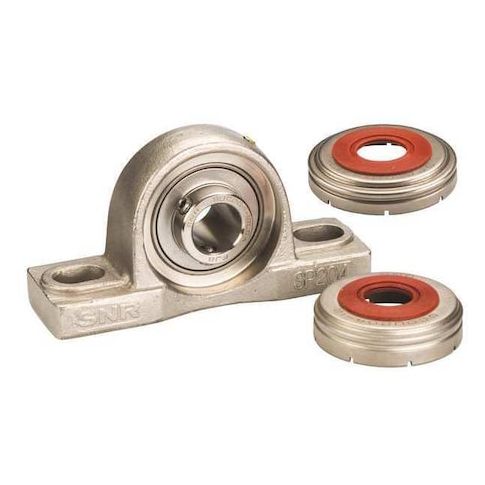

Pillow Block Bearing, Stainless Steel, Set Screw Locking, Ball Insert, 1 in Dia, Stainless Steel MPN:SUCP205-16C0FG1
Pillow Block Bearing, Stainless Steel, Set Screw Locking, Ball Insert, 1 in Dia, Stainless Steel
This stainless steel pillow block bearing from NTN is designed for high-performance applications in food processing, pharmaceutical, and other sanitary environments. The bearing's FDA/USDA-H1 solid grease ensures a clean and reliable operation, while the stainless steel housing provides corrosion resistance and durability. With a maximum speed of 5,100 RPM and a temperature range of -4°F to 250°F, this bearing is suitable for use in conveyor systems, mixers, and other equipment where high-speed operation is required. Its compact design and bolt-through mount make it easy to integrate into existing systems.
Top product features:
- Radial ball bearing design provides low friction and smooth rotation
- Stainless steel housing resists corrosion and ensures durability
- FDA/USDA-H1 solid grease lubricant meets food-grade safety standards
Top product applications:
- Pump shaft support
- Conveyor belt drive
- Machine tool spindle support
Pillow Block Bearing, Base Height 0.629 in, Base Width 1.496 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 27/64 in, Closure Open, Housing Material Stainless Steel, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 4 1/8 in, Mount Type Bolt-Through, Number of Mount Holes 2
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.25
- Package Width: 3.69
- Package Height: 2.44
- Package Weight: 2.09
Product info last updated on February 1, 2026 9:34am UTC
Category: Bearings, V-belts and Power Transmission Equipment
