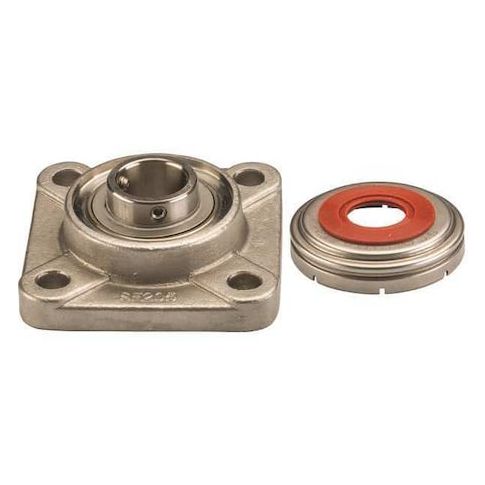

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-3/4 in Dia, Stainless Steel, Set Screw MPN:SUCF209-28C0FG1
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-3/4 in Dia, Stainless Steel, Set Screw
This 4-bolt flange bearing features a stainless steel housing and insert, providing excellent corrosion resistance and durability in harsh environments. Its double-sealed design ensures long-lasting protection against contamination and debris. Suitable for use in food processing, pharmaceutical, and other sanitary applications, this bearing operates at temperatures between -20°F and 250°F and speeds up to 3,100 RPM. Its compact design and fixed expansion type make it ideal for mounting in tight spaces, while its FDA/USDA-H1 compliant lubricant meets the highest standards for food and chemical processing equipment. Perfect for applications requiring high reliability and sanitation.
Top product features:
- Cylindrical bore allows for easy installation and alignment
- Double sealed closure provides protection from contaminants and moisture
- Fixed expansion type ensures consistent and stable performance under varying operating conditions
Top product applications:
- Food Processing Machinery
- Pumps
- Conveyors
4 Bolt Flange Bearing, Back Side to Center Width 0.866 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC209-28FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 4 9/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.12
- Package Width: 7.00
- Package Height: 2.69
- Package Weight: 5.12
Product info last updated on January 31, 2026 7:25am UTC
Category: Bearings, V-belts and Power Transmission Equipment
