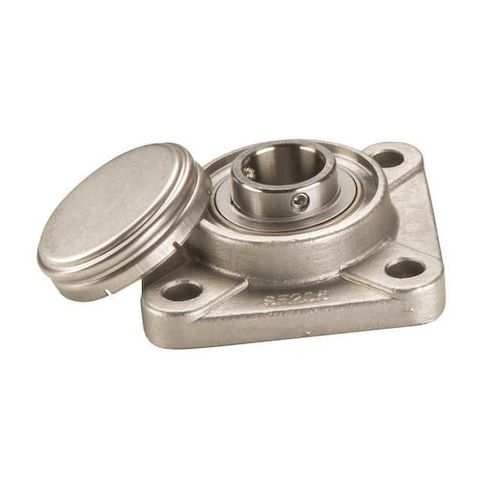

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-3/4 in Dia, Stainless Steel, Set Screw MPN:SUCF209-28CCFG1
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-3/4 in Dia, Stainless Steel, Set Screw
This 4-bolt flange bearing from NTN is designed for heavy-duty applications, featuring a stainless steel housing and insert for corrosion resistance. Its double-sealed design provides long-lasting protection against contaminants, while the FDA/USDA-H1 compliant grease ensures safe use in food processing and pharmaceutical industries. With a maximum speed of 3,100 RPM and operating temperature range of -20 to 250°F, this bearing is suitable for use in high-speed and high-temperature applications. It's ideal for use in machinery, equipment, and components in industries such as food processing, pharmaceuticals, and chemical processing, where reliability and sanitation are paramount.
Top product features:
- Double sealed closure provides a secure and protected environment for the bearing insert
- Bearing insert is made of stainless steel for resistance to corrosion and wear
- Radial ball bearing design allows for smooth and efficient rotation at high speeds
Top product applications:
- Food Processing Equipment
- Conveyor Systems
- Industrial Machinery
4 Bolt Flange Bearing, Back Side to Center Width 0.866 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC209-28FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 4 9/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.12
- Package Width: 7.00
- Package Height: 2.69
- Package Weight: 5.12
Product info last updated on February 4, 2026 2:20pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
