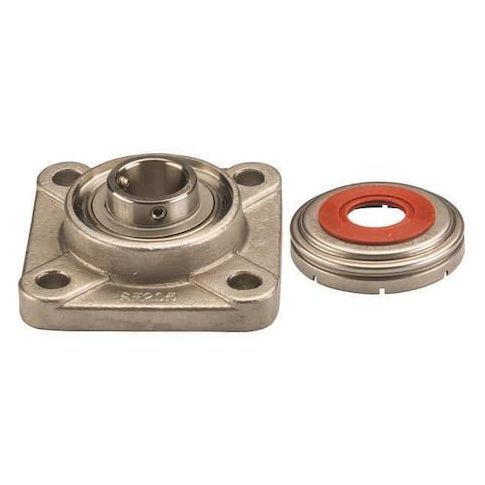

4 Mount Holes, Square, 4 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Stainless Steel, Set Screw Locking MPN:SUCF208-24C0FG1
4 Mount Holes, Square, 4 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Stainless Steel, Set Screw Locking
The NTN 4-Bolt Flange Bearing is a reliable and durable solution for various industrial applications. Its stainless steel housing and FDA/USDA-H1 solid grease ensure high-performance operation in harsh environments. With a maximum speed of 3,300 RPM and a temperature range of -20 to 250°F, this bearing is suitable for use in food processing, pharmaceutical, and chemical industries. Its fixed expansion type and double-sealed closure provide excellent protection against contamination and wear. Ideal for use in machinery, equipment, and conveyor systems, this bearing offers long-lasting reliability and minimal maintenance requirements.
Top product features:
- Double sealed closure for protection against contaminants
- Radial ball bearing type for smooth rotation and reduced friction
- Stainless steel bearing insert and housing for corrosion resistance and durability
Top product applications:
- Food processing equipment
- Pump and valve applications
- Conveyor systems
4 Bolt Flange Bearing, Back Side to Center Width 0.827 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/2 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC208-24FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 4 1/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.12
- Package Width: 7.00
- Package Height: 2.69
- Package Weight: 4.17
Product info last updated on February 3, 2026 1:32pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
