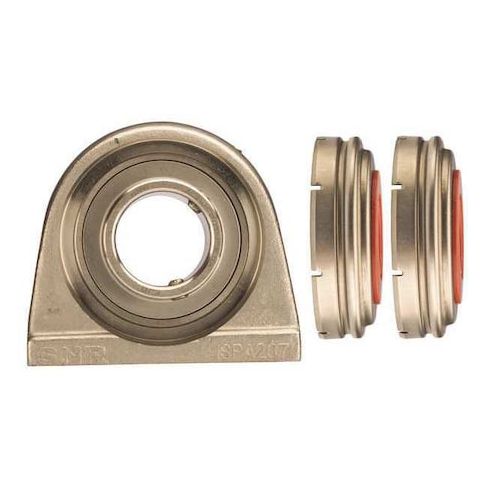

Pillow Block Bearing, Stainless Steel Housing Material, Set Screw, Ball, 1 in Dia, Stainless Steel Insert Material MPN:SUCPA205-16C0FG1
Pillow Block Bearing, Stainless Steel Housing Material, Set Screw, Ball, 1 in Dia, Stainless Steel Insert Material
This high-performance stainless steel pillow block bearing from NTN is designed for demanding applications in harsh environments. With a maximum operating temperature of 250°F and a minimum operating temperature of -4°F, it can withstand extreme temperatures. The double-sealed design and FDA/USDA-H1 solid grease ensure reliable lubrication and protection from contaminants. Suitable for use in food processing, pharmaceutical, and other industries where cleanliness and hygiene are critical, this bearing is also ideal for high-speed applications up to 5,100 RPM. Its compact design and bolt-through mount make it easy to integrate into existing systems.
Top product features:
- Double sealed design for protection against dust and contaminants
- Radial ball bearing type for smooth and quiet operation
- FDA/USDA-H1 solid grease lubricant for use in food and pharmaceutical applications
Top product applications:
- Conveyor systems
- Gearboxes
- Pumps
Pillow Block Bearing, Base Height 0.472 in, Base Width 1.496 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 27/64 in, Closure Double Sealed, Housing Material Stainless Steel, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Length 2 in, Mount Type Bolt-Through, Number of Mount Holes 2
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.62
- Package Width: 4.38
- Package Height: 2.56
- Package Weight: 1.72
Product info last updated on March 8, 2026 2:40pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
