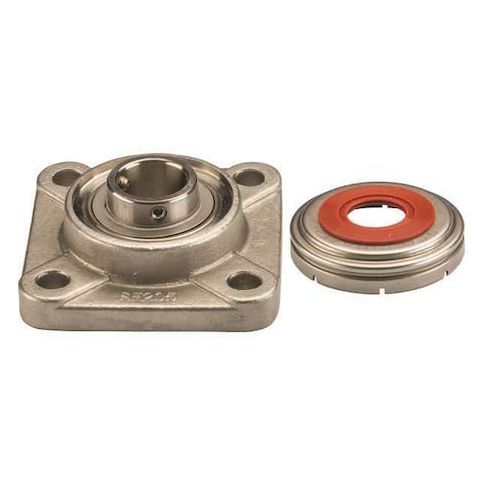

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Stainless Steel, Set Screw MPN:SUCF207-20C0FG1
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Stainless Steel, Set Screw
This 4-bolt flange bearing from NTN is a high-performance solution for applications requiring precision and reliability. With a stainless steel housing and FDA/USDA-H1 solid grease lubricant, it is ideal for use in food processing, pharmaceutical, and other sanitary environments. The radial ball bearing insert provides smooth operation and long lifespan, while the double sealed design protects against contamination and wear. Suitable for use in temperatures from -20°F to 250°F and speeds up to 3,700 RPM, this bearing is perfect for applications such as pumps, mixers, and conveyor systems in industries like food processing, chemical processing, and manufacturing.
Top product features:
- Fixed housing type provides structural support
- Double sealed closure protects against environmental contaminants
- Radial ball bearing design enables smooth rotation at high speeds
Top product applications:
- Pump and motor mounts in food processing equipment
- Conveyor and gear box mounts in manufacturing facilities
- Heavy-duty machinery and equipment mounts in industrial settings
4 Bolt Flange Bearing, Back Side to Center Width 0.748 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC207-20FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,700 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 3 5/8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.62
- Package Width: 5.25
- Package Height: 3.31
- Package Weight: 3.11
Product info last updated on February 23, 2026 7:44am UTC
Category: Bearings, V-belts and Power Transmission Equipment
