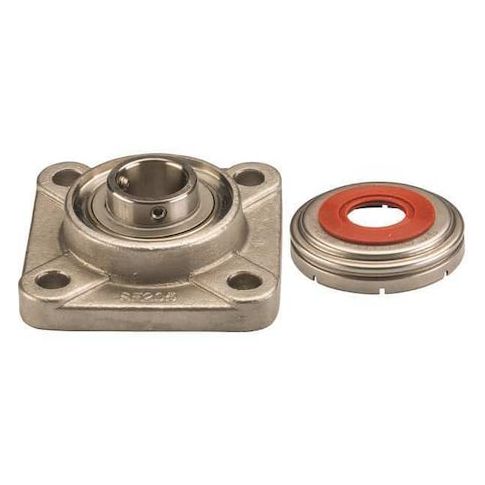

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw MPN:SUCF205-16C0FG1
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw
The NTN 4-Bolt Flange Bearing is a high-performance solution for demanding applications. Its stainless steel housing and radial ball bearing insert provide exceptional durability and resistance to corrosion. The double-sealed design ensures long-lasting lubrication and protection from contaminants. With a maximum speed of 5,100 RPM and operating temperature range of -20 to 250°F, this bearing is ideal for use in food processing, pharmaceutical, and other industries where cleanliness and reliability are paramount. Its compact design and fixed expansion type make it easy to integrate into existing systems, making it a versatile and reliable choice for a variety of applications.
Top product features:
- Double sealed for protection against dust and contaminants
- Stainless steel bearing insert and housing for corrosion resistance and durability
- Fixed expansion type for secure and consistent performance in a wide temperature range
Top product applications:
- Food Processing Equipment
- Pump and Compressor Applications
- Conveyor Systems
4 Bolt Flange Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC205-16FG1, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 2 3/4 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.05
- Package Width: 4.12
- Package Height: 2.55
- Package Weight: 1.81
Product info last updated on January 31, 2026 3:34am UTC
Category: Bearings, V-belts and Power Transmission Equipment
