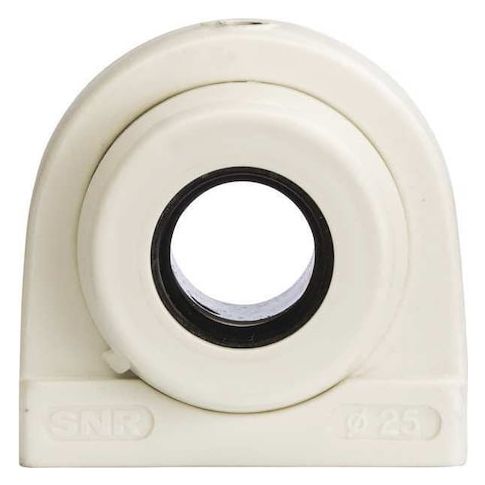

Pillow Block Bearing, Thermoplastic Housing Material, Set Screw, Ball, 1-3/16 in Dia, Stainless Steel Insert Material MPN:SUCTBL206-19C0FG1
Pillow Block Bearing, Thermoplastic Housing Material, Set Screw, Ball, 1-3/16 in Dia, Stainless Steel Insert Material
This NTN bearing is a reliable and durable solution for various industrial applications, including food processing, pharmaceutical, and chemical manufacturing. The stainless steel bearing insert and FDA/USDA-H1 solid grease ensure a clean and sanitary environment, while the polymer housing provides resistance to corrosion and chemical damage. The double-sealed design protects against contamination and extends the bearing's lifespan. With a temperature range of -0°F to 212°F, this bearing can withstand extreme temperatures and harsh environments, making it ideal for use in conveyor systems, pumps, and other heavy-duty machinery. Its compact size and tapped base make it easy to install.
Top product features:
- Double sealed closure for protection against dust and contaminants
- Radial ball bearing insert for smooth rotation and reduced friction
- FDA/USDA-H1 solid grease lubricant for use in food processing and sanitary applications
Top product applications:
- Pump mounting
- Conveyor systems
- Food processing equipment
Pillow Block Bearing, Base Height 0.63 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/16 in, Bore Type Cylindrical, Center Height 1 11/16 in, Closure Double Sealed, Housing Material Polymer, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Length 3 in, Mount Type Tapped Base, Number of Mount Holes 2, Overall Height 3.296 in, Overall Length 3.968 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.55
- Package Width: 4.62
- Package Height: 2.05
- Package Weight: 1.21
Product info last updated on January 29, 2026 2:44pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
