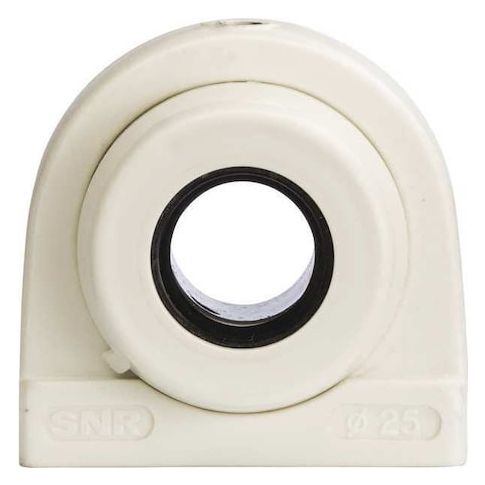

Pillow Block Bearing, Polymer, Set Screw Locking, Ball Insert, 1 in Dia, Stainless Steel MPN:SUCTBL205-16C0FG1
Pillow Block Bearing, Polymer, Set Screw Locking, Ball Insert, 1 in Dia, Stainless Steel
This 1-inch bore diameter pillow block bearing from NTN is designed for heavy-duty applications in demanding environments. With a stainless steel bearing insert and double-sealed closure, it provides exceptional durability and protection against contaminants. The PBT housing and FDA/USDA-H1 solid grease ensure compliance with food and pharmaceutical industry standards. Suitable for use in temperatures ranging from 14°F to 212°F, this bearing is ideal for applications in food processing, pharmaceutical manufacturing, and other industries where high-performance and reliability are critical. Its compact size and tapped base make it easy to mount and integrate into various systems.
Top product features:
- Double sealed closure protects the bearing from dust and contaminants.
- Housing made of polymer provides resistance to corrosion and wear.
- FDA/USDA-H1 solid grease lubricant meets food-grade standards for safe use in applications where cleanliness is critical.
Top product applications:
- Industrial machinery assembly
- Robotics and automation systems
- Food processing equipment
Pillow Block Bearing, Base Height 0.55 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 7/16 in, Closure Double Sealed, Housing Material Polymer, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Length 2 in, Mount Type Tapped Base, Number of Mount Holes 2, Overall Height 2.875 in, Overall Length 3 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 4.10
- Package Height: 2.60
- Package Weight: 0.80
Product info last updated on January 27, 2026 4:45am UTC
Category: Bearings, V-belts and Power Transmission Equipment
