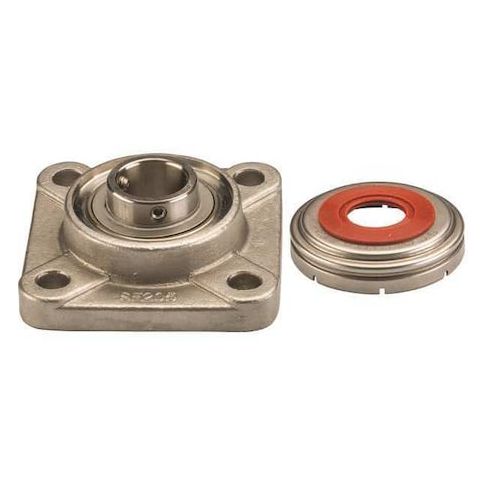

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Stainless Steel, Set Screw MPN:SUCF204-12C0FG1
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Stainless Steel, Set Screw
The NTN 4-Bolt Flange Bearing is a high-performance bearing designed for use in harsh environments. With a stainless steel housing and FDA/USDA-H1 solid grease lubricant, it provides exceptional corrosion resistance and meets strict food and pharmaceutical industry standards. The bearing is suitable for applications in the food processing, pharmaceutical, and chemical industries, as well as in high-temperature and high-speed environments. Its fixed expansion type and double sealed closure ensure long-lasting performance and protection from contamination. Ideal for use in pumps, mixers, and other equipment where reliability and cleanliness are critical.
Top product features:
- 4-Bolt design allows for secure mounting to a variety of applications.
- Double sealed closure provides protection from contaminants and extends bearing life.
- Stainless steel housing and bearing insert offer high resistance to corrosion and wear.
Top product applications:
- Food Processing Equipment
- Machine Tooling
- General Industrial Equipment
Flange Mount Bearing, Back Side to Center Width 0.591 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height 1 11/16 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC204-12FG1, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 5,900 RPM, Maximum Temperature 212 Degrees F
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.55
- Package Width: 3.62
- Package Height: 1.55
- Package Weight: 1.46
Product info last updated on February 1, 2026 3:10am UTC
Category: Bearings, V-belts and Power Transmission Equipment
