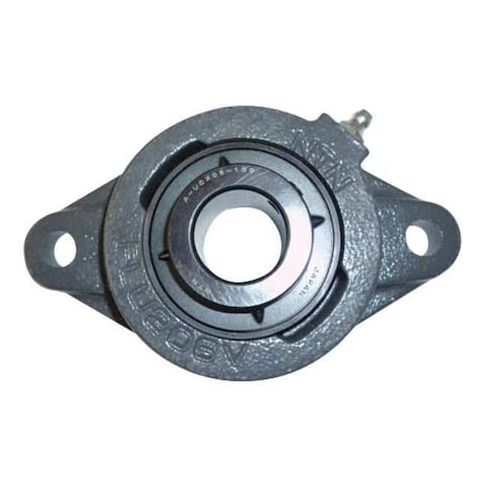

Flange Bearing, 2-Bolt, Ball, 1-3/16" Bore MPN:UCFLUX-1.3/16M
Flange Bearing, 2-Bolt, Ball, 1-3/16" Bore
This 2-Bolt Flange Bearing from NTN is a reliable and versatile solution for various industrial applications. With a 1-3/16in bore and a maximum speed of 4,000 RPM, it's ideal for use in high-precision machinery, such as gearboxes, pumps, and conveyor systems. The double-sealed closure and NLGI #3 equivalent lubricant ensure long-lasting performance and minimal maintenance. The bearing's fixed expansion type and cast iron housing provide stability and durability in extreme temperatures (-40°F to 250°F). Its compact design and easy installation make it a great choice for OEMs and aftermarket replacements in a wide range of industries, including automotive, aerospace, and manufacturing.
Top product features:
- Double sealed closure provides protection from dust and contaminants
- Radial ball bearing design allows for smooth rotation and reduced friction
- Fixed expansion type housing provides stable support and prevents over-expansion
Top product applications:
- Industrial equipment mounting
- Heavy machinery assembly
- Automotive engine component
2 Bolt Flange Bearing, Back Side to Center Width 0.827 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/16 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing A-UCX06-103D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 4,000 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 3 25/32 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 3.90
- Package Height: 2.00
- Package Weight: 3.40
Product info last updated on February 1, 2026 3:59am UTC
Category: Bearings, V-belts and Power Transmission Equipment
