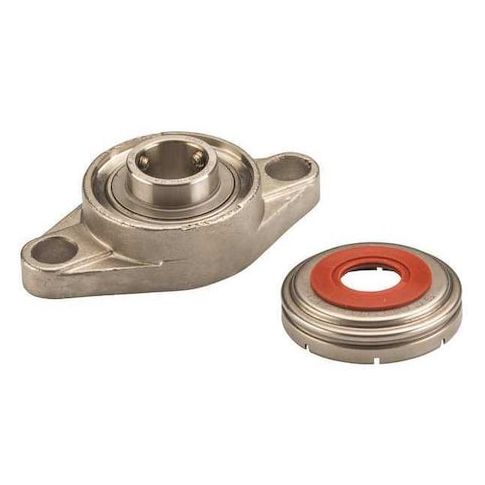

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw Locking MPN:SUCFL205-16C0FG1
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Stainless Steel, Set Screw Locking
This 2-bolt flange bearing from NTN is a heavy-duty solution for applications requiring high-speed and high-temperature performance. With a stainless steel housing and bearing insert, it provides excellent corrosion resistance and durability. The double-sealed closure ensures long-lasting lubrication, and the FDA/USDA-H1 solid grease meets strict food industry standards. Suitable for use in a variety of industries, including food processing, pharmaceuticals, and chemical processing, this bearing is ideal for applications such as pumps, mixers, and conveyor systems where high speed and reliability are critical. Its compact design and easy installation make it a convenient choice for many mechanical systems.
Top product features:
- Double sealed closure to prevent contamination and maintain cleanliness
- Stainless steel bearing insert and housing for corrosion resistance
- Radial ball bearing design for smooth rotation and reduced friction
Top product applications:
- Food Processing Machinery
- Pumps and Compressors
- Conveyors and Material Handling Equipment
2 Bolt Flange Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC205-16, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 3 57/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 4.40
- Package Height: 2.80
- Package Weight: 1.57
Product info last updated on January 26, 2026 7:42pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
