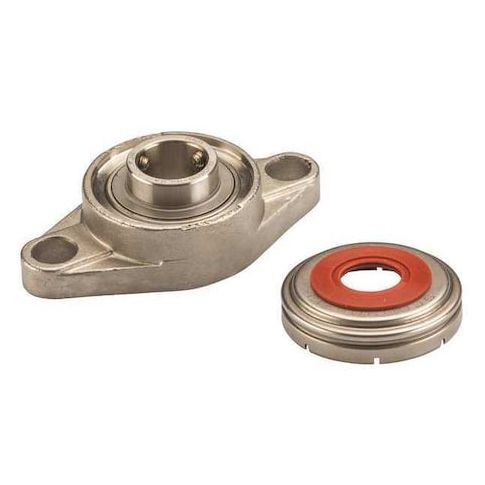

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Stainless Steel, Set Screw Locking MPN:SUCFL204-12C0FG1
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Stainless Steel, Set Screw Locking
This 2-bolt flange bearing from NTN is designed for heavy-duty applications where reliability and durability are crucial. With a stainless steel housing and bearing insert, it can withstand extreme temperatures and harsh environments. The double-sealed closure ensures long-lasting performance and protects against contaminants. Suitable for use in food processing, pharmaceutical, and other sanitary industries, this bearing is FDA/USDA-H1 compliant and features a maximum speed of 5,900 RPM. Its compact design and versatility make it an ideal solution for a wide range of applications, from machinery and equipment to conveyors and pumps.
Top product features:
- Double Sealed Closure provides protection from dust and contaminants.
- Radial Ball Bearing Insert provides smooth rotational motion.
- Fixed Expansion Type allows for secure and stable mounting.
Top product applications:
- Food processing equipment
- Pump and valve applications
- Conveyor system components
2 Bolt Flange Bearing, Back Side to Center Width 0.591 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC204-12, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,900 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 3 35/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.55
- Package Width: 3.62
- Package Height: 2.05
- Package Weight: 1.04
Product info last updated on February 24, 2026 7:12pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
