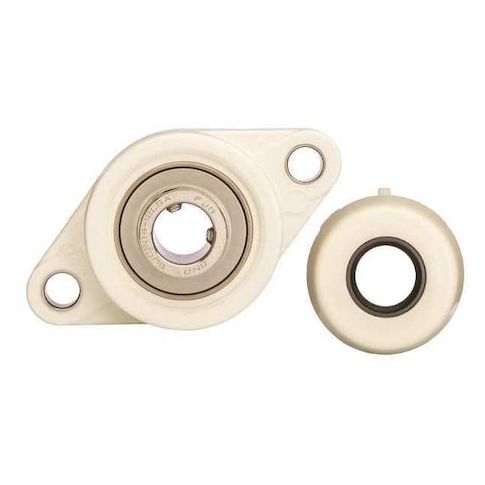

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Polymer, Set Screw Locking MPN:SUCNFL208-24C0FG1
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-1/2 in Dia, Polymer, Set Screw Locking
The NTN 2-Bolt Flange Bearing is a reliable and versatile solution for various applications. Its stainless steel bearing insert and double sealed closure ensure durability and protection against harsh environments. Ideal for use in food processing, pharmaceutical, and other sanitary industries, this bearing is also suitable for general industrial and commercial applications. With a maximum speed of 3,300 RPM and temperature range of -4°F to 250°F, it can handle demanding operations. Its compact size and fixed expansion type make it easy to install and maintain, providing consistent performance and extending equipment lifespan.
Top product features:
- Double sealed closure for protection against contamination and debris
- Radial ball bearing design for smooth and quiet operation
- Fixed expansion type for secure and consistent fit in applications
Top product applications:
- Conveyor Belt Components
- Automotive Steering Systems
- Food Processing Equipment
2 Bolt Flange Bearing, Back Side to Center Width 0.846 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/2 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Rhombus, Included Bearing SUC208-24, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Number of Mount Holes 2, Overall Height 3 15/16 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.62
- Package Width: 5.25
- Package Height: 3.31
- Package Weight: 1.94
Product info last updated on April 11, 2026 10:24pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
