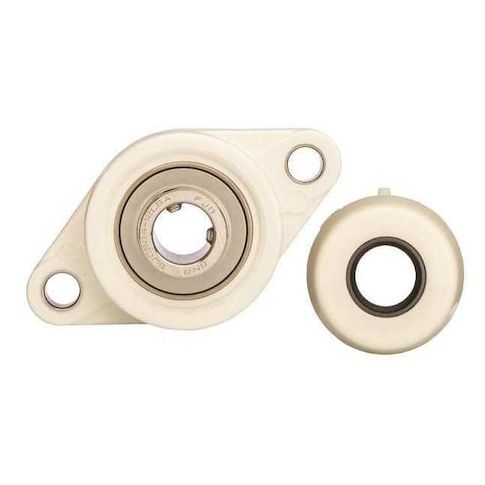

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Polymer, Set Screw Locking MPN:SUCNFL207-20C0FG1
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Polymer, Set Screw Locking
The NTN Flange Bearing is a reliable and versatile solution for various applications, including food processing, pharmaceutical, and chemical industries. Its 2-bolt design and stainless steel bearing insert ensure durability and resistance to corrosion. The double-sealed closure and FDA/USDA-H1 solid grease provide a sanitary and long-lasting lubrication system. With a maximum speed of 3,700 RPM and operating temperature range of -4°F to 250°F, this bearing is suitable for demanding environments. Its compact rhombus housing and fixed expansion type make it ideal for use in tight spaces and applications requiring precise control.
Top product features:
- Double sealed design provides protection against contamination and debris
- Fixed expansion type ensures consistent bearing performance
- Radial ball bearing insert type enables smooth and quiet rotation at high speeds
Top product applications:
- Pump mounting
- Conveyor system components
- Machine tool components
2 Bolt Flange Bearing, Back Side to Center Width 0.709 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Rhombus, Included Bearing SUC207-20, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,700 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Number of Mount Holes 2, Overall Height 3 17/32 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.62
- Package Width: 5.25
- Package Height: 3.31
- Package Weight: 1.48
Product info last updated on February 1, 2026 12:07am UTC
Category: Bearings, V-belts and Power Transmission Equipment
