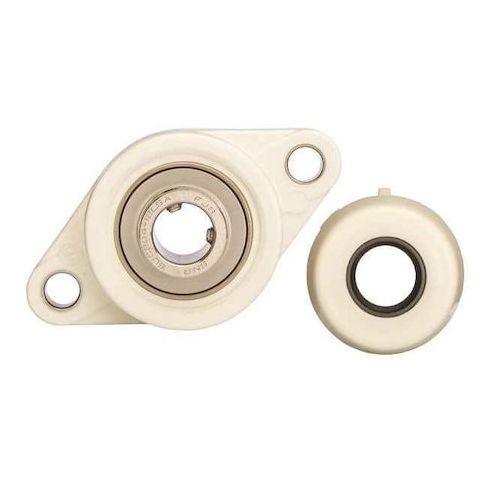

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Polymer, Set Screw Locking MPN:SUCNFL205-16C0FG1
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Polymer, Set Screw Locking
This 2-bolt flange bearing from NTN is a reliable and versatile solution for various industrial applications. Its stainless steel insert and FDA/USDA-H1 solid grease ensure optimal performance in harsh environments. With a maximum speed of 5,100 RPM and a temperature range of -4 to 250°F, it can handle demanding tasks. The bearing's rhombus housing and double-sealed closure provide excellent protection against contaminants and moisture. Suitable for use in food processing, pharmaceutical, and chemical industries, this bearing is a great choice for applications requiring high precision and reliability. Its compact design and easy installation make it a convenient option for many industries.
Top product features:
- Radial ball bearing design for smooth rotation
- Double sealed closure for protection from contaminants
- FDA/USDA-H1 solid grease lubricant for food-grade safety
Top product applications:
- Industrial machinery
- Food processing equipment
- Pumps
2 Bolt Flange Bearing, Back Side to Center Width 0.669 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Rhombus, Included Bearing SUC205-16, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Number of Mount Holes 2, Overall Height 2 3/4 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.17
- Package Width: 6.12
- Package Height: 1.80
- Package Weight: 0.66
Product info last updated on April 24, 2026 7:52pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
