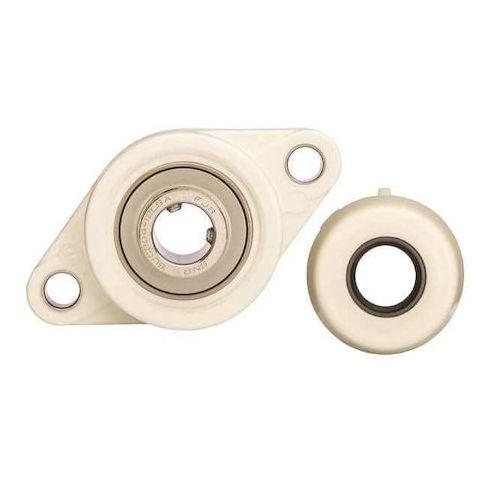

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Polymer, Set Screw MPN:SUCNFL206-20C0FG1
2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1-1/4 in Dia, Polymer, Set Screw
The NTN 2-Bolt Flange Bearing is a reliable and durable solution for various applications requiring radial ball bearings. Its stainless steel insert and FDA/USDA-H1 solid grease ensure high-performance and sanitation in food processing and pharmaceutical industries. The bearing's fixed expansion type and double sealed closure provide long-lasting protection against contaminants and moisture. With a maximum speed of 4,300 RPM and a temperature range of -4°F to 250°F, this bearing is suitable for use in a wide range of machinery, including pumps, mixers, and conveyor systems, where precision and reliability are crucial.
Top product features:
- Double sealed closure to protect the bearing from dust and debris
- Radial ball bearing design for smooth and efficient rotation
- Stainless steel bearing insert for corrosion resistance and durability
Top product applications:
- Industrial machinery
- Pump and valve applications
- Conveyor systems
Flange Mount Bearing, Back Side to Center Width 0.748 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height 1 9/16 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Polymer, Housing Type Rhombus, Included Bearing SUC206-20, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 4,300 RPM, Maximum Temperature 212 Degrees F
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.62
- Package Width: 4.38
- Package Height: 2.56
- Package Weight: 0.99
Product info last updated on February 3, 2026 8:40pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
