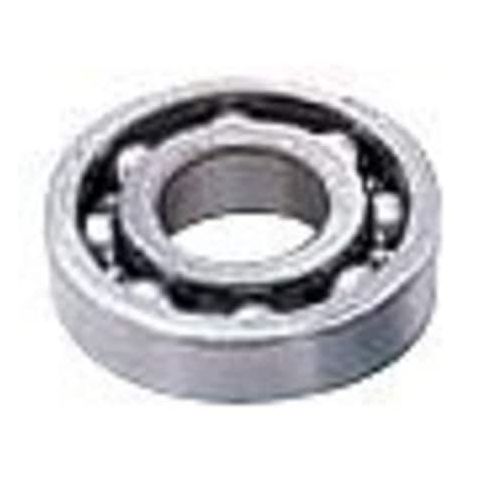

Deep Groove Radial Ball Bearing, 6209 Industry Number, Open Closure, 45 mm Bore Dia, Alloy Steel MPN:6209C3
Deep Groove Radial Ball Bearing, 6209 Industry Number, Open Closure, 45 mm Bore Dia, Alloy Steel
This high-performance radial ball bearing from NTN is designed for demanding applications where precision and reliability are crucial. With a 45mm bore diameter and ABEC rating 1, it provides exceptional accuracy and smooth operation. The open design allows for easy installation and maintenance, while the alloy steel construction and chrome plating ensure durability and resistance to wear. Suitable for use in a wide range of industries, including aerospace, automotive, and manufacturing, this bearing is ideal for applications where high loads and speeds are present, such as in gearboxes, motors, and pumps. Its compact size and high load capacity make it a versatile choice.
Top product features:
- Radial bearing design allows for smooth rotation and reduced friction
- Alloy steel ring material provides high strength and durability
- Chrome plated finish reduces friction and wear on moving parts
Top product applications:
- Pumps
- Conveyors
- Industrial machinery
Radial Ball Bearing, Bearing Industry Number 6209, Bore Diameter 45 mm, Closure Open, Outer Ring Width 19 mm, Outside Diameter 85 mm, Ring Material Alloy Steel, System of Measurement Metric, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Bore Diameter Tolerance +0/-0.010 mm, Cage Type Pressed, Dynamic Radial Load Capacity 36,000 N, Fillet Radius 1.1 mm, Finish Chrome Plated, Includes Retaining Ring No, ISO Rating Class 0, Lubricant Material Not Available
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 1.00
- Package Height: 3.60
- Package Weight: 0.90
Product info last updated on March 1, 2026 12:58pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
