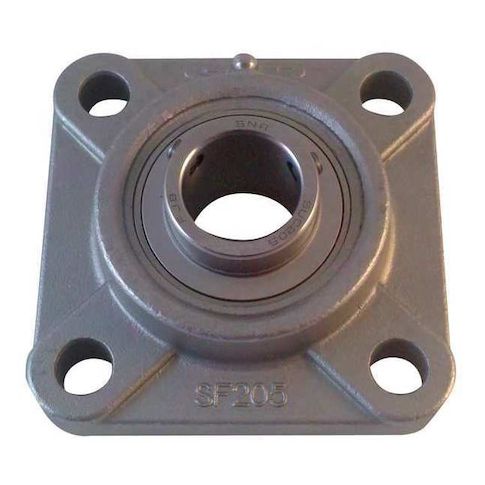

Flange Bearing, 4-Bolt, Ball, 1-1/4" Bore MPN:SUCF206-20
Flange Bearing, 4-Bolt, Ball, 1-1/4" Bore
The NTN 4-Bolt Flange Bearing is a high-performance bearing designed for demanding applications. With a stainless steel housing and insert, it offers exceptional durability and resistance to corrosion. The double-sealed design provides long-lasting lubrication and protects against contamination. This bearing is ideal for use in food processing, pharmaceutical, and other industries where cleanliness and sanitation are critical. It can withstand temperatures from -20°F to 250°F and speeds up to 4,300 RPM, making it suitable for a wide range of applications, including pumps, gearboxes, and conveyor systems. Its compact design and easy installation make it a convenient solution for many industrial needs.
Top product features:
- Double sealed closure to prevent contamination and maintain bearing cleanliness
- Fixed expansion type to ensure secure and precise fit in applications
- FDA/USDA-H1 solid grease lubricant to meet food and pharmaceutical industry standards
Top product applications:
- Food Processing Machinery
- Pumps and Compressors
- Conveyors and Material Handling Equipment
4 Bolt Flange Bearing, Back Side to Center Width 0.709 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Square, Included Bearing SUC206-20, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 3 17/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.50
- Package Height: 1.70
- Package Weight: 2.46
Product info last updated on February 25, 2026 6:20am UTC
Category: Bearings, V-belts and Power Transmission Equipment
