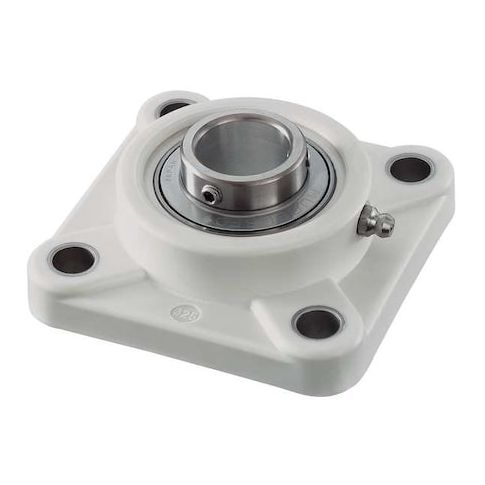

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 20 mm Dia, Thermoplastic, Set Screw MPN:SUCFPL204
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 20 mm Dia, Thermoplastic, Set Screw
The NTN 4-Bolt Flange Bearing is a reliable and durable solution for various industrial applications. This ball bearing features a stainless steel insert, FDA/USDA-H1 solid grease, and a maximum temperature rating of 120°C, making it suitable for use in harsh environments. The bearing's fixed expansion type and double sealed closure ensure long-lasting performance and protection against contamination. With a maximum speed of 5,900 RPM, this bearing is ideal for high-speed applications in industries such as food processing, pharmaceuticals, and chemical manufacturing. Its compact design and square housing make it easy to integrate into existing systems.
Top product features:
- Double sealed closure protects the bearing from dust and contaminants
- Radial ball bearing design allows for smooth rotation and reduced friction
- FDA/USDA-H1 solid grease lubricant ensures long-lasting and food-safe operation
Top product applications:
- Food Processing Machinery
- Pump and Compressor Applications
- Industrial Equipment Mounting
4 Bolt Flange Bearing, Back Side to Center Width 18 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 20 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Square, Included Bearing SUC204, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 5,900 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Mount Hole Center-to-Center Height 64 mm, Number of Mount Holes 4
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 4.10
- Package Height: 1.60
- Package Weight: 0.71
Product info last updated on February 4, 2026 7:10am UTC
Category: Bearings, V-belts and Power Transmission Equipment
