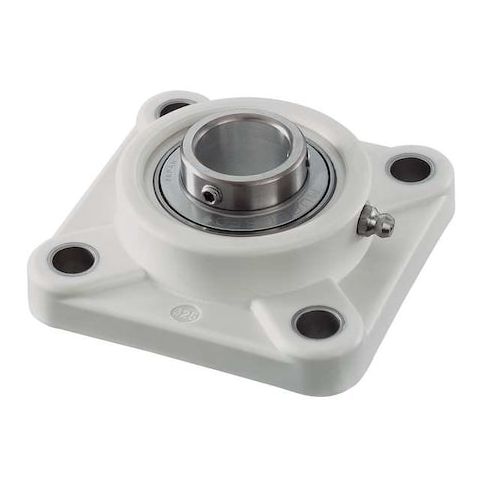

4 Mount Holes, Square, 4 Bolt Flange Bearing, Radial Ball, 40 mm Dia, Polymer, Set Screw Locking MPN:SUCFPL208
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0504007
4 Mount Holes, Square, 4 Bolt Flange Bearing, Radial Ball, 40 mm Dia, Polymer, Set Screw Locking
The NTN 4-Bolt Flange Bearing is a reliable and versatile solution for various industrial applications. Its stainless steel bearing insert and FDA/USDA-H1 compliant lubricant make it suitable for use in food processing, pharmaceutical, and chemical industries. The bearing's radial ball design and fixed expansion type ensure smooth operation and consistent performance. With a maximum speed of 3,300 RPM and operating temperature range of -20 to 120°C, this bearing can handle demanding applications. Its compact design and square housing make it ideal for use in tight spaces, making it a great option for machinery and equipment manufacturers.
Top product features:
- Double sealed design for protection against contaminants
- Radial ball bearing insert for smooth rotation and reduced friction
- Cylindrical bore diameter of 40 mm for precise fit and low vibration
Top product applications:
- Food Processing Equipment
- Automotive Steering Systems
- Medical Equipment
4 Bolt Flange Bearing, Back Side to Center Width 23 mm, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 40 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Polymer, Housing Type Square, Included Bearing SUC208, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 3,300 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Mount Hole Center-to-Center Height 102 mm, Number of Mount Holes 4
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 6.80
- Package Height: 3.40
- Package Weight: 2.48
Product info last updated on February 3, 2026 3:54pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
