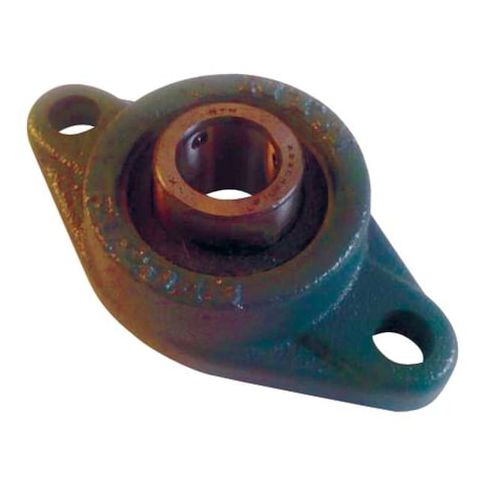

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw MPN:UCFL204-012D1
2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw
The NTN 2-Bolt Flange Bearing is a versatile and reliable component designed for a variety of applications. Its 3/4in cylindrical bore and radial ball bearing insert ensure smooth operation and long-lasting performance. Suitable for use in industrial machinery, automotive parts, and other equipment, this bearing is ideal for applications where high speeds and temperatures are present. With a maximum speed of 6,700 RPM and a temperature range of -40 to 250°F, it can handle demanding conditions. Its double-sealed closure and fixed expansion type provide added protection against contamination and wear, making it a valuable addition to any mechanical system.
Top product features:
- 2-Bolt design provides secure mounting
- Double sealed closure protects against contaminants
- Radial ball bearing design enables smooth rotation at high speeds
Top product applications:
- Pump and motor mounting
- Conveyor systems
- Gearbox and transmission applications
Flange Mount Bearing, Back Side to Center Width 0.591 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height 1 3/16 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UC204-012D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 6,700 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height 0 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.60
- Package Height: 4.50
- Package Weight: 1.00
Product info last updated on February 21, 2026 6:20am UTC
Category: Bearings, V-belts and Power Transmission Equipment
