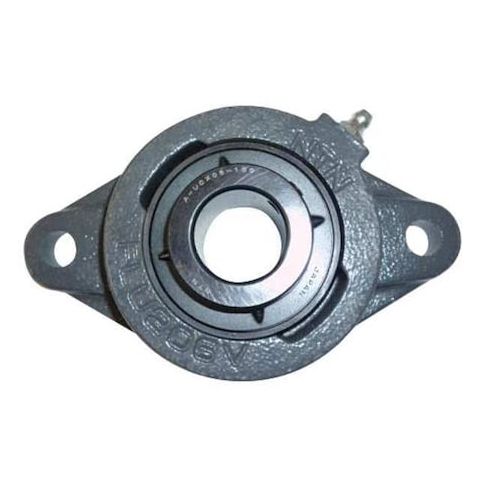

2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 2 in Dia, Cast Iron, Set Screw Locking MPN:UCFLU-2SM
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 2 in Dia, Cast Iron, Set Screw Locking
This 2-Bolt Flange Bearing from NTN is a reliable solution for heavy-duty applications, featuring a robust design and wide temperature range. With a maximum speed of 3,050 RPM and operating temperature of -40 to 250°F, it can handle demanding conditions. The bearing's alloy steel insert and cast iron housing provide exceptional durability and resistance to wear. Suitable for use in industrial machinery, equipment, and heavy machinery, this flange bearing offers smooth operation and reduced maintenance. Its compact rhombus housing and double-sealed design ensure long-lasting performance and minimize downtime.
Top product features:
- 2-Bolt flange design allows for easy mounting and dismounting of the bearing
- Radial ball bearing provides smooth rotation and support for heavy loads
- Double sealed closure protects the bearing from dirt and moisture
Top product applications:
- Conveyor systems
- Pumps and compressors
- Industrial machinery
2 Bolt Flange Bearing, Back Side to Center Width 0.937 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing A-UC210-200D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 3,050 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 4 9/16 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 2.70
- Package Height: 7.40
- Package Weight: 5.35
Product info last updated on January 31, 2026 11:17pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
